Servo Precision Double-Helix High Speed Sheet Cutter Machine Dayuan SMC 1100/1500/1700/1900

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

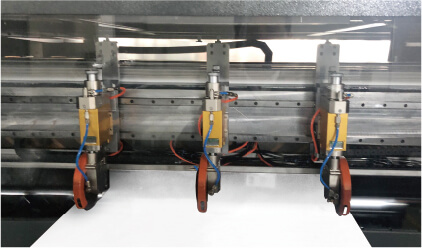

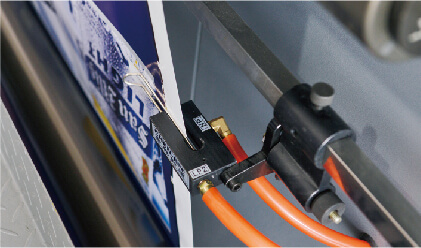

  • Auto positioning slitting system.

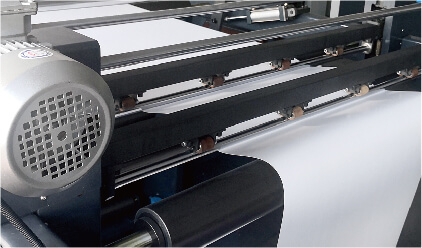

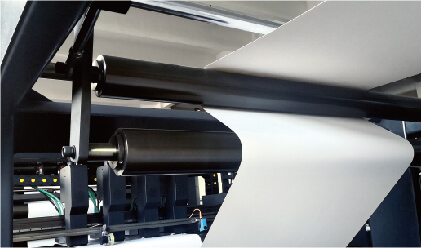

  • Paper pre-press device.

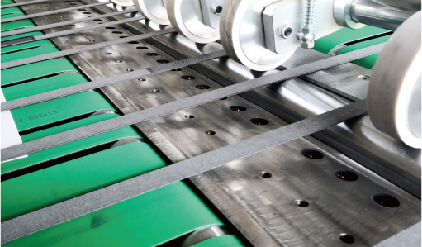

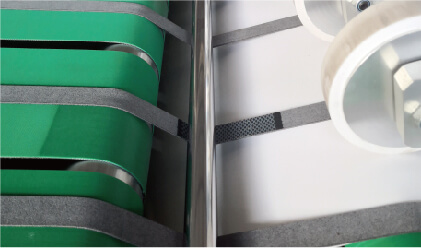

  • 3 times delivery device(no impression line).

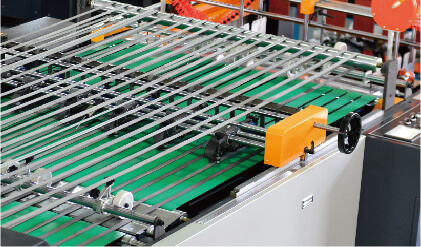

  • Collecting board pneumatic lifting device.
Manufacturer Dayuan

Product details

Specifications

Model SMC-1100/1500/1700 SMC-1900

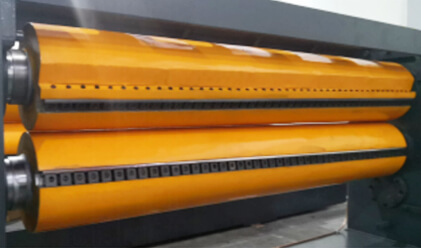

Model of cutting paper Double rotary sheeter Double rotary sheeter
Thickness of cutting paper 100-1000gsm 100-1000gsm
Cutting length range 450-1650mm 450-1650mm
Cutting precision Cutting length≤1000mm: ±0.1mm
Cutting length>1000mm: ±0.1%
Cutting length≤1000mm: ±0.1mm
Cutting length>1000mm: ±0.1%
Max. cutting meter speed 350 m/min 300 m/min
Max. cutting speed 440 cuts/min 380 cuts/min
Max. scroll diameter 1800mm 1800mm
Max. paper cutting width 1100(45”)mm
1500(59”)mm
1700(67”)mm
1900(75”)mm
Max. paper piling height 1600mm 1600mm
The request for air compressor 0.8Mpa 0.8Mpa
Power consumption 380V/220VⅩ50Hz 380V/220VⅩ50Hz
Gross weight 18000/20000/23000kgs 25000kgs
Full-load power 69/82/90kw 100kw
