Servo Precision Double Helix High Speed Sheet Cutter Machine With Auto Splicer&Auto Pallet Changer Dayuan SMC 1100ZH/1500ZH/1700ZH/1900ZH

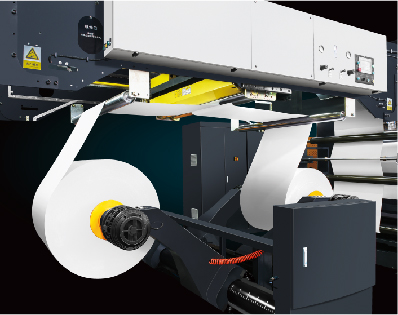

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.
Manufacturer Dayuan
Product details
Specifications
| Model | SMC-1100ZH/1500ZH/1700ZH | SMC-1900ZH |
|---|---|---|

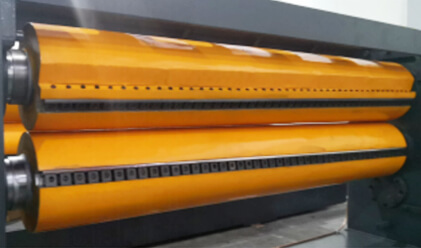

| Model of cutting paper | Double rotary sheeter | Double rotary sheeter |
| Thickness of cutting paper | 100-1000gsm | 100-1000gsm |
| Cutting length range | 450-1650mm | 450-1650mm |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 350 m/min | 300 m/min |
| Max. cutting speed | 440 cuts/min | 380 cuts/min |
| Max. scroll diameter | 1800mm | 1800mm |
| Max. paper cutting width | 1100ZH(45”)mm 1500ZH(59”)mm 1700ZH(67”)mm | 1900ZH(75”)mm |
| Max. paper piling height | 1600mm | 1600mm |
| The request for air compressor | 0.8Mpa | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz | 380V/220VⅩ50Hz |
| Gross weight | 25000/27000/30000kgs | 32000kgs |
| Full-load power | 69/82/90kw | 100kw |
