Digital Printing Servo Precision Double Helix Sheet Cutter Machine Dayuan SMC 1100S/1500S/1700S / SM 1900

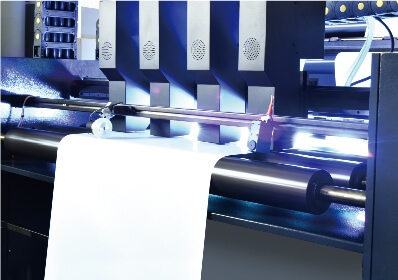

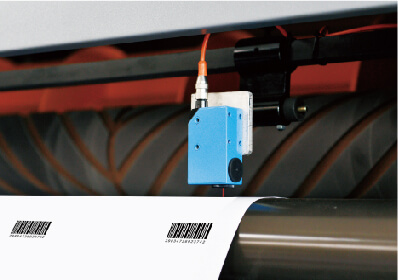

Digital ink-jet printing is a printing type of non-contact, non pressure, non plate printing. All digital information can be printed by inputting the digital ink-jet printer through the interface. The traditional ink-jet printing is printing first, then ink-jet printing, which is low efficiency and large loss in paper. At present,the Digital Ink-jet Double-helix High Speed Sheet Cutter Machine developed by our company is to print QR code, bar code and digital pattern on the jumbo roll first through digital ink-jet,then cut the jumbo roll into single sheets, realizing intelligent and efficient detection, enabling digital ink-jet printing and slitting to be completed at one time, greatly reducing paper loss.
Manufacturer Dayuan
Product details
Specifications
| Model | SMC-1100S/1500S/1700S | SM 1900 |
|---|---|---|
| Model of cutting paper | Double rotary sheeter | Double rotary sheeter |
| Thickness of cutting paper | 100-1000gsm | 100-1000gsm |
| Cutting length range | 450-1650mm | 450-1650mm |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 350 m/min | 300 m/min |
| Max. cutting speed | 440 cuts/min | 380 cuts/min |
| Max. digit printing speed | 150 m/min | - |
| Max. scroll diameter | 1800mm | 1800mm |
| Max. paper cutting width | 1100S(45”)mm 1500S(59”)mm 1700S(67”)mm | 1900(75”)mm |
| Max. paper piling height | 1600mm | 1600mm |
| The request for air compressor | 0.8Mpa | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz | 380V/220VⅩ50Hz |
| Gross weight | 21000/23000/26000kgs | 22000kgs |
| Full-load power | 69/82/90kw | 100kw |
