Computerized Cutter (185 - 300 cm) Datien CT-185E, CT-260E, CT-300E
This machine is designed to use a double knife drive arms system which has an advantage of high speed, accurate, consistent and durable.
Manufacturer Datien
Product details
Specifications

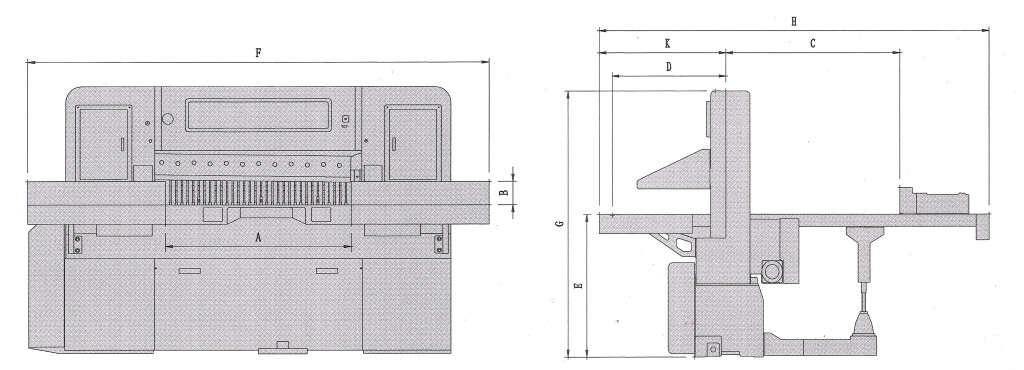

| MODEL | CT-185E | CT-260E | CT-300E |
|---|---|---|---|
| A Cutting Width, mm( inches ) | 1850( 72.8 ) | 2600( 102.4 ) | 3000( 118.1 ) |
| B Cutting Height, mm( inches ) | 165( 63 ) | 165( 63 ) | 165( 63 ) |
| C Cutting Length, mm( inches ) | 1850( 72.8 ) | 2600( 102.4 ) | 3000( 118.1 ) |
| D Front Table Length, mm( inches ) | 750( 29.5 ) | 750( 29.5 ) | 750( 29.5 ) |
| E Table Height, mm( inches ) | 900( 35.4 ) | 900( 35.4 ) | 900( 35.4 ) |
| F Machine Width, mm( inches ) | 3580( 140.9 ) | 4230( 166.5 ) | 4630( 182.3 ) |
| G Machine Height, mm( inches ) | 1780( 70 ) | 1780( 70 ) | 1780( 70 ) |
| H Machine Length, mm( inches ) | 3380( 133.1 ) | 4030( 158.7 ) | 4430( 174.4 ) |
| K Machine Front Length, mm( inches ) | 890( 35 ) | 890( 35 ) | 890( 35 ) |
| Smallest Cut-with clamp, mm( inches ) | 120( 4.7 ) | 120( 4.7 ) | 120( 4.7 ) |
| without clamp, mm( inches ) | 40( 1.6 ) | 40( 1.6 ) | 40( 1.6 ) |
| Cutting Cycle Per Minute, mm( inches ) | 36 | 36 | 36 |
| Clamp Pressure, mm( inches ) | 400 - 6000 kg ( 880 - 13200 Ib ) | 400 - 6000 kg ( 880 - 13200 Ib ) | 400 - 6000 kg ( 880 - 13200 Ib ) |
| Net Weight, mm( inches ) | 6900 kg | 9500 kg | 11500 kg |
| Power Requirement, mm( inches ) | 14.75 kw ( 19.67 HP ) | 20.25 kw ( 27 HP ) | 24.5 kw ( 32.7 HP ) |
