Computerized Cutter (115 - 155 cm) Datien CT-115S, CT-137S, CT-155S
- Use industrial computer to control
- Support multiple languages, and can input in Chinese, English or handwriting.

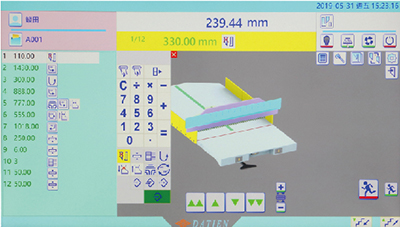

- Gtaphical operation interface.
- Automatic notification for periodic maintenance.
- With computer function and optional functions such as isometric, cutting label, cutting memory, paper pushing and air supply, etc.
- Cutsomer name and bill name can be entered in Chinese or English or handwritten and quick query.
- 1000 groups of customer names, a total of 100,000 programs can be set.
Manufacturer Datien
Product details
Specifications

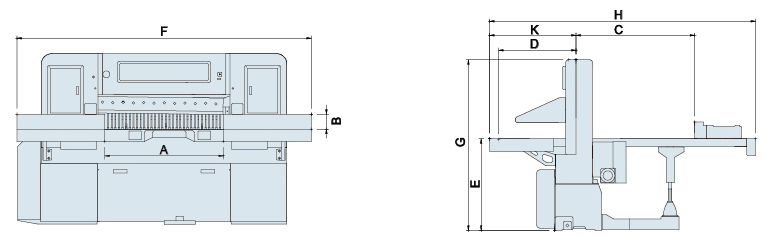

| MODEL | CT-115S | CT-137S |
|---|---|---|
| A Cutting Width, mm(inches) | 1150( 45.25 ) | 1370( 53.93 ) |
| B Cutting Height | 165( 63 ) | 165( 63 ) |
| C Cutting Length | 1150( 45.25 ) | 1370( 53.93 ) |
| D Front Table Length | 750( 29.5 ) | 750( 29.5 ) |
| E Table Height | 900( 35.4 ) | 900( 35.4 ) |
| F Machine Width | 2900( 114 ) | 3100( 122 ) |
| G Machine Height | 1680( 66 ) | 1680( 66 ) |
| H Machine Length | 2700( 106.3 ) | 2900( 114.2 ) |
| K Machine Front Length. | 890( 35 ) | 890( 35 ) |
| Smallest Cut-with clamp | 90( 3.54 ) | 90( 3.54 ) |
| without clamp | 30( 1.18 ) | 30( 1.18 ) |
| Cutting Cycle Per Minute | 48 | 48 |
| Clamp Pressure | 400 - 4000 kg ( 880 - 8800 Ib ) | 400 - 4000 kg ( 880 - 8800 Ib ) |
| Net Weight | 4100 kg | 4500 kg |
| Main Motor | 5.6 kW ( 7.5 HP ) | 5.6 kW ( 7.5 HP ) |
| Backgauge Motor | 0.5 kw ( 0.69 HP ) | 1 kw ( 1.34 HP ) |
| Air Blower For Table | 0.75 kw ( 1 HP ) | 0.75 kw ( 1 HP ) |
| Power Requirement | 6.85 kw ( 9.19 HP ) | 7.35 kw ( 9.84 HP ) |
