Paper unloader machine Datien DUL-125L / DUL-125R, DUL-125XL / DUL-125XR, DUL-145L / DUL-145R, DUL-145XL / DUL-145R
DATIEN Paper Cutting System with UNLOADER is to give ideally smooth workflows for Printing company, Silk-screen printers, Label producers, Bookbinderies and Converters.
Finished Stock can be delivered to Printing Press directly or finishing or packing from UNLOADER,to save one hand-pass time, to protect workers for health and safe.
Manufacturer Datien
Product details
Specifications

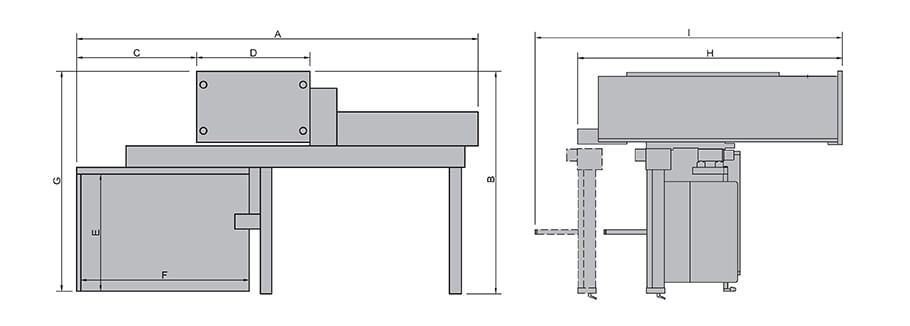

| MODEL | DUL-125L / DUL-125R | DUL-125XL / DUL-125XR | DUL-145L / DUL-145R | DUL-145XL / DUL-145R |
|---|---|---|---|---|
| A ( cm / inch ) | 300( 116 1/8 ) | 305(120 ) | 409( 161 ) | 450( 177 1/8 ) |
| B ( cm / inch ) | 165( 64 15/16 ) | 165( 64 15/16 ) | 220( 86 5/8 ) | 240( 94 1/2 ) |
| C ( cm / inch ) | 90( 35 1/2 ) | 96( 37 1/8 ) | 143( 56 5/16 ) | 163( 54 1/8 ) |
| D ( cm / inch ) | 84( 33 ) | 84( 33 ) | 107( 42 1/8 ) | 107( 42 1/8 ) |
| E ( cm / inch ) | 87( 34 1/2 ) | 102( 40 1/8 ) | 112( 44 1/8 ) | 132( 42 ) |
| F ( cm / inch ) | 130( 51 1/6 ) | 125( 49 1/4 ) | 190( 74 13/16 ) | 210( 82 5/8 ) |
| G ( cm / inch ) | 164( 64 9/16 ) | 178( 70 1/16 ) | 226( 89 ) | 246( 96 5/8 ) |
| H ( cm / inch ) | 200( 78 3/4 ) | 200( 78 3/4 ) | 235( 92 1/2 ) | 235( 92 1/2 ) |
| I ( cm / inch ) | 230( 90 1/2 ) | 230( 90 1/2 ) | 265( 104 3/8 ) | 265( 104 3/8 ) |
| Stack paper size Maximum ( cm / inch ) | 80 x 125( 31 1/2 x 49 1/4 ) | 95 x 125( 37 3/8 x 49 1/4 ) | 105 x 150( 41 5/16 x 59 ) | 125 x 170( 49 1/8 x 67 ) |
| Stack paper size Minimum ( cm / inch ) | 80 x 40( 31 1/2 x 15 3/4 ) | 95 x 40( 37 3/8 x 15 3/4 ) | 105 x 40( 41 5/16 x 15 3/4 ) | 125 x 40( 49 1/8 x 15 3/4 ) |
| Maximum height of single stack, the stack of paper | 16.5( 6 1/2 ) | 16.5( 6 1/2 ) | 16.5( 6 1/2 ) | 16.5( 6 1/2 ) |
| Stack height Maximum ( cm / inch ) | 130( 51 3/16 ) | 130( 51 3/16 ) | 160( 63 ) | 180( 70 7/8 ) |
| Stack height Minimum ( cm / inch ) | 10( 3 15/16 ) | 10( 3 15/16 ) | 18( 7 1/16 ) | 18( 7 1/16 ) |
| The largest single stack load Kg / lb | 200 ( 440 ) | 200 ( 440 ) | 300 ( 660 ) | 350 ( 670 ) |
| Machine weight | 1150 kg | 1150 kg | 2200 kg | 2600 kg |
| Electric power | 2.3 Kw ( 3.1 Hp ) | 2.3 Kw ( 3.1 Hp ) | 4.5 Kw ( 6 Hp ) | 5 Kw ( 6.7 Hp ) |
| Machine Height ( cm / inch ) | 188 ( 74 ) | 188 ( 74 ) | 262 ( 103 1/8 ) | 262 ( 103 1/8 ) |
