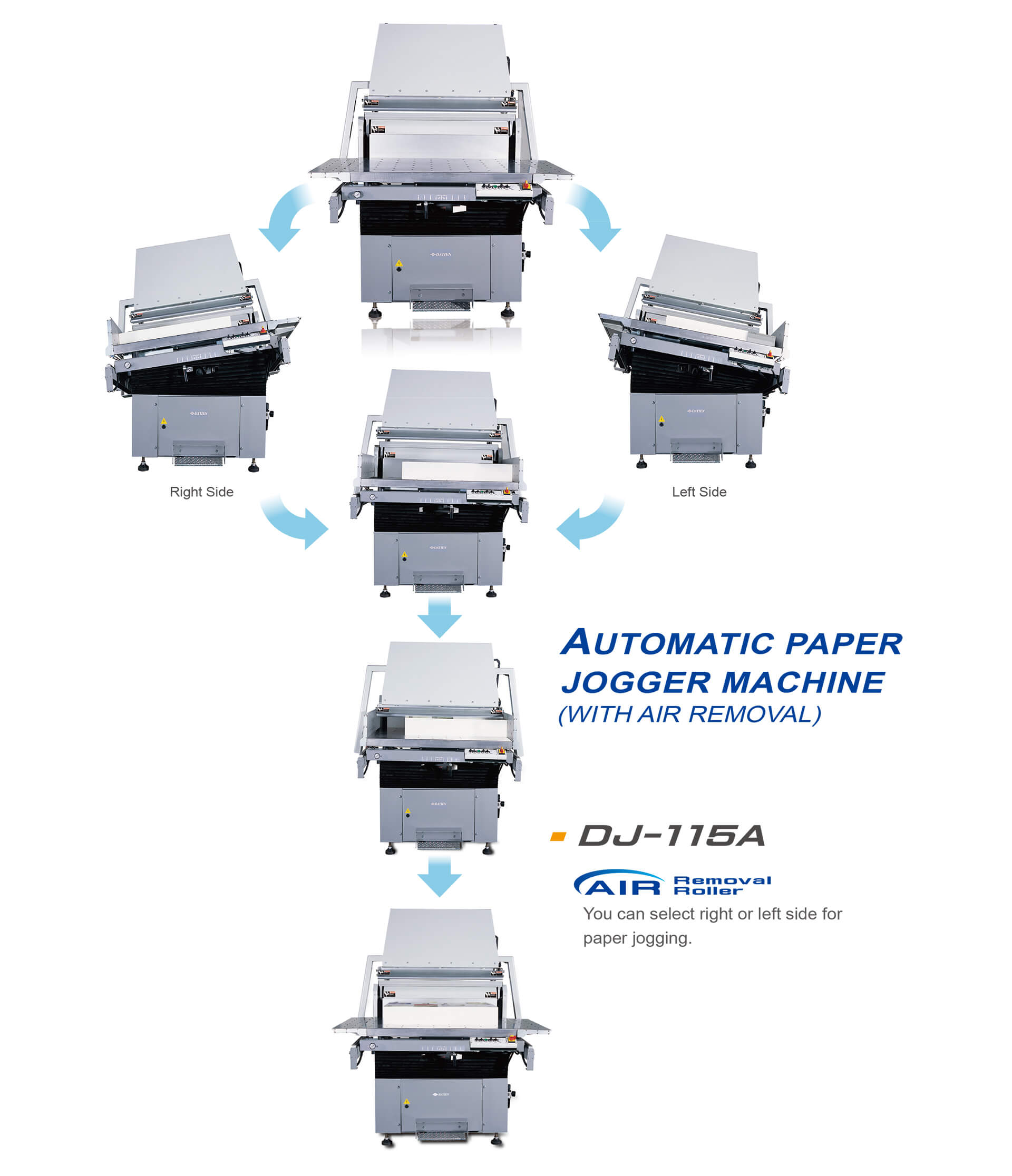

Automatic paper jogger Datien DJ-115A, DJ-135A, DJ-145A, DJ-165A
-
Manufacturer Datien
Product details
Specifications
| MODEL | DJ-115A | DJ-135A | DJ-145A | DJ-165A |
|---|---|---|---|---|
| Size ( useable table surface ) cm / inch | 90 x 115( 35 7/16 x 45 1/4 ) | 90 x 135( 35 7/16 x 53 1/8 ) | 113 x 145( 44 1/2 x 57 1/16 ) | 126 x 165( 49 5/8 x 64 15/16 ) |
| Maximum pile height cm / inch | 16.5( 6 1/2 ) | 16.5( 6 1/2 ) | 16.5( 6 1/2 ) | 16.5( 6 1/2 ) |
| Power consumption KW | 1.75 | 2 | 2.25 | 2.25 |
| Required space( gauges tilted down. dxw ) cm / inch | 128 x 155( 50 3/8 x 61 ) | 128 x 170( 50 3/8 x 67 ) | 151 x 185( 59 3/8 x 72 7/8 ) | 164 x 205( 64 1/2 x 80 3/4 ) |
| Table height ( infi nitely adjustable ) from / to cm / inch | 86 - 95( 33 7/8 - 37 3/8 ) | 86 - 95( 33 7/8 - 37 3/8 ) | 86 - 95( 33 7/8 - 37 3/8 ) | 86 - 95( 33 7/8 - 37 3/8 ) |
| Air capacity I/min | 9 | 13 | 13 | 13 |
| Pressure range bar | 6 - 8 | 6 - 8 | 6 - 8 | 6 - 8 |
| Weight.net kg | 590 | 660 | 740 | 840 |
