Full-Automatic Window Patching Machine Caunta TC-680/880
- Horizontal knife cutting film+Single group film applicator.
- Servo motor paper feeding.
- Servo motor film feeding.
- Paper receiving stepper with batch counting.
- Paper vacuum adsorption transport.
- Double sheet / empty sheet gluing rising automatically.
- High precision point to point positioning.

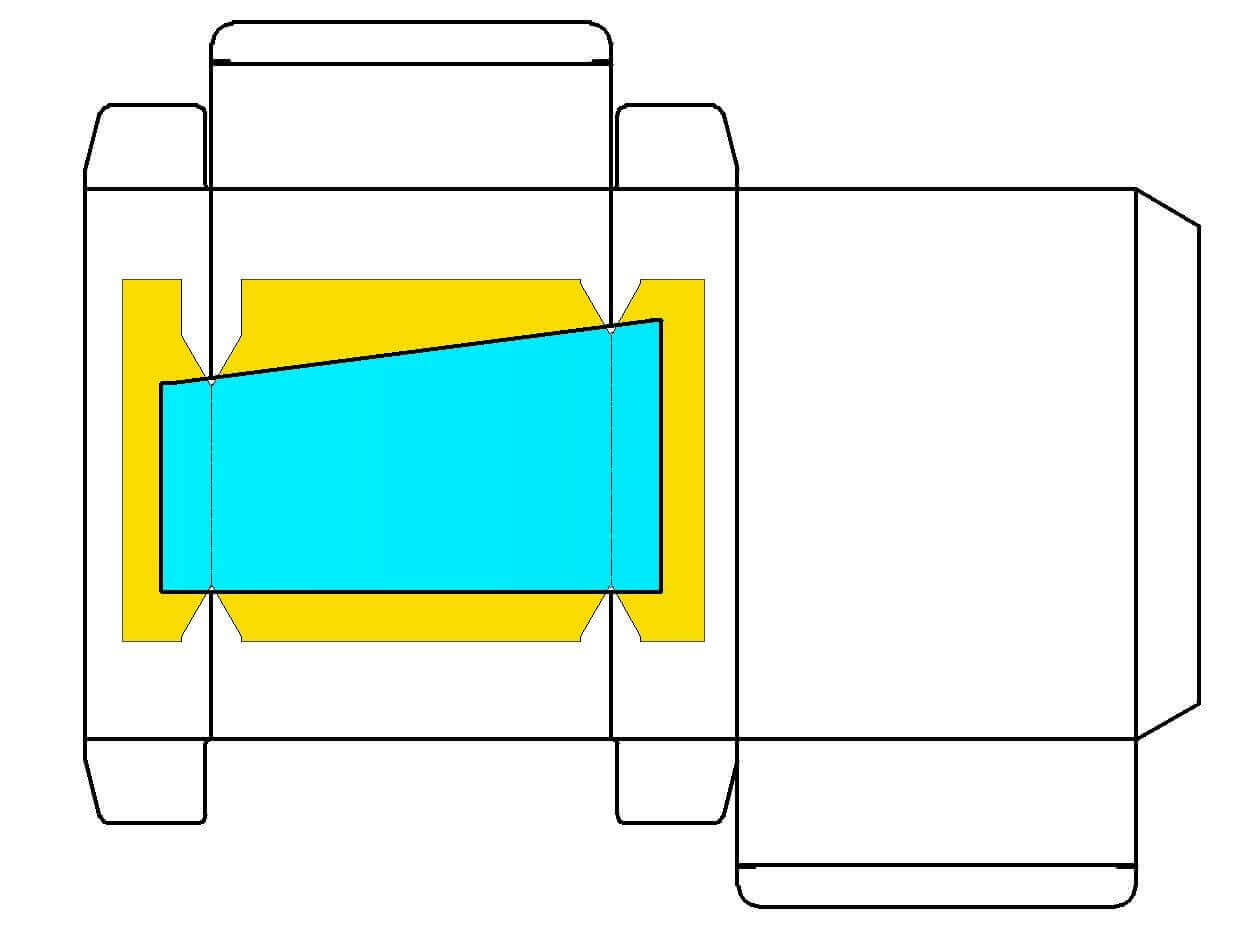

- Film with creasing and cutting angle function.
- Follow lable of film printing surface.
- Film with punching holes.

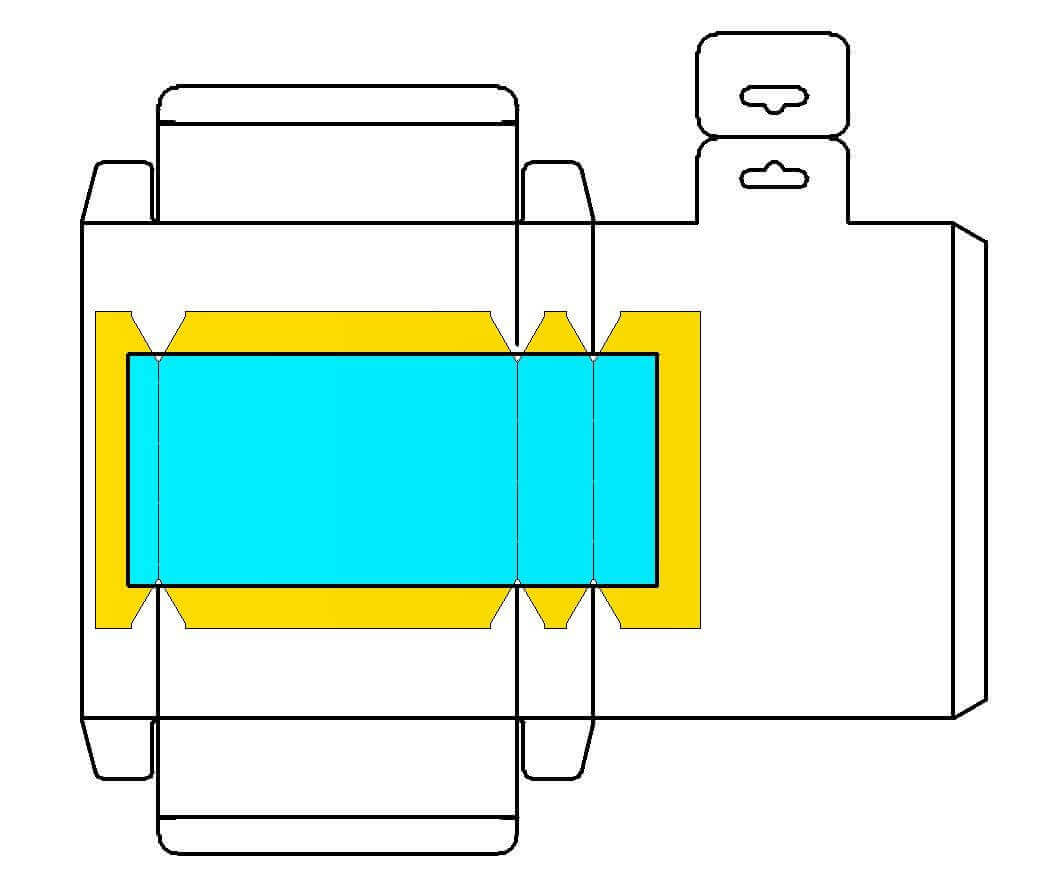

- Film with transverse creasing (optional).
- Film constant temperature leveling system (optional).
Manufacturer Caunta
Product details
Specifications
| Model | TC-680 / TC-880 |
|---|---|
| Max.Paper Size | W650xL550mm / W850xL550mm |
| Min.Paper Size | 110X110mm |
| Paper Weight | Kraft Paper：150-1200g/㎡ White Cardboard：230-1200g/㎡ Corrugated Paper：≤3mm |
| Max.Film Size | 300x260mm / 400x300mm |
| Min.Film Size | W30xL60mm |
| Max.Film Unwinding Diameter | 400mm |
| Film Thickness | PVC:0.08-0.3mm APET/PET:0.06-0.3mm |
| Film Precision | ±0.25mm |
| Maximum Speed | 7000pcs/h |
| Quantity of Servo Motor | Drivingpart：Paperfeedingdepartment1set，filmdeliverydepartment1set，filmpastingbelt1set |
| Quantity of Stepping Motor | Driving Parts： Automatic paper receiving 1 set |
| VQuantityofV-shapedPunchingMould | Four sets of Kits |
| QuantityofFilmCreasingWheels | Four sets of Kits |
| Power | 380(415V) 50(60Hz) 12KW / 380(415V) 50(60Hz) 15KW |
| Overall Dimension | L692xW133x165cm / L692xW153x165cm |
| Overall Weight | 2800kg / 3500kg |
