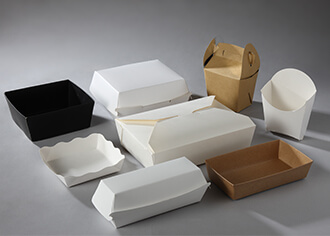

Paper Meal Box and Lunch Box Forming Machine Win Shine WS-1101MA
New Desigh & Hing Speed!
Manufacturer Win Shine
Product details
Bnefits
- Save 80% air power cost.
- Save Maintain cost
- Lower occupied area.
- Increase 50% speed.
- Production Speed: 75 pcs/min
- Machine Dimension: 166 (L) x 114 (W) x 209 (H)
Specifications
| Model | WS-1101MA |
|---|---|

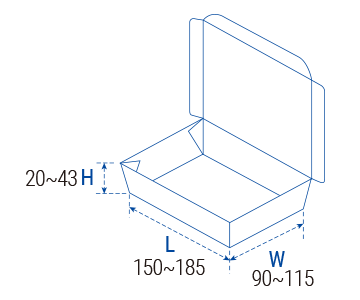

| Dimension, LxWxH | 150~185 x 90~115 x 20~43 |
| Production Speed (pcs/min) | Max: 75pcs/min. |
| Paper PE Coating | Single or double PE coated paper ISG-320~360 g/m² |
| Sealing Method | Hot Air Heater |
| Electrical Requirement | Approx 6 kw |
| Compressed Air | Approx 100 ℓ/min |
| Machine Dimension (LxWxH cm) | 170x245x200 |
| Machine Weight (kgs) | 1500 |
* Customized design in welcome.
* We reserve the right to alter specifications without prior notice.
