Semi-automatic Die Cutter For Corrugated Board Wook IL WTNS-1300, 1700, 1900, 2100,WTNS-2200, 2500 S,SS
Semi-Automatic Diecutter offers that multiple job changes and many different kinds of substrates from microflute, laminated paper and up to plastic board with heat device are run by manual feed. The operator feeds the top sheet to front lay and side lay to achieve precise registration.
Manufacturer Wook IL
Product details

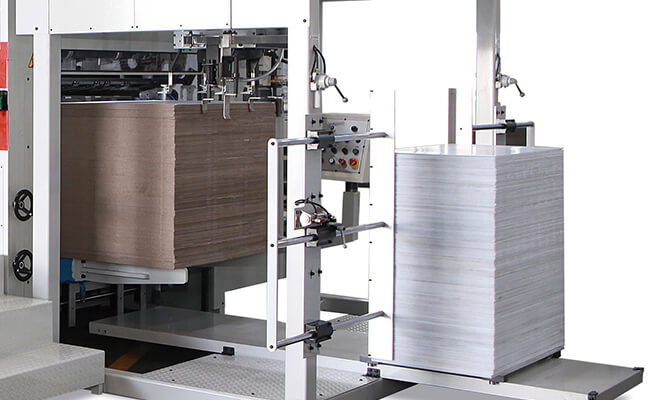

Feeding Section
- Easy to be fed at high speed
- Pallet direct feed from the printer or laminator
- Easy feeding for warp and twisted papers
- Accurate feeding by front and side lay
- Front Lay adjustments to compensate for any misprinted boards
- Possible kiss cutting
- 2 Monitors to check the sheet flow
- Possible to add Retractable Feeder (Option)
Diecutting Section
- Index Drive by Sankyo
- Hard and soft cutting plate system available
- Quick set center line system
- Easy chase order change by push button
- Air Ball System for cutting plate in & out easily
- Cutting pressure from 300 ton up to 550 ton according to machine size

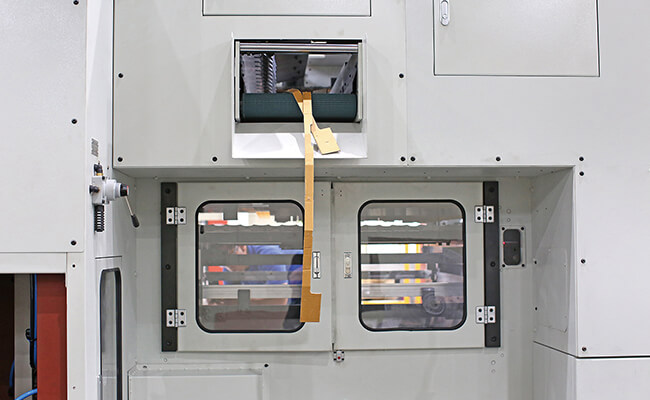

Stripping Section
- Centerline system for quick set-up
- Electric Clamp for male stripping form
- Triple action stripping: male, female & bottom pin stripping
- Scrap conveyor
- Lead edge removal unit and conveyor
- Possible 100% stripping by Grip Edge Removal
Delivery Section
- High Pile delivery system
- Tab Inserter for Batch counter as standard
- Side and Front Jogger ensures perfect stack
- Other types of delivery unit available
Specifications
| MODEL | WTNS-1300 | WTNS-1500 | WTNS-1700 | WTNS-1900 | WTNS-2100 | WTNS-2200 | WTNS-2500 |
|---|---|---|---|---|---|---|---|
| MAX.SHEET SIZE | 1100x1300mm | 1100x1500mm | 1200x1700mm | 1300x1900mm | 1500x2100mm | 1700x2200mm | 1700x2500mm |
| MIN.SHEET SIZE | 500x650mm | 550x750mm | 600x850mm | 650x950mm | 750x1050mm | 850x1100mm | 850x1250mm |
| MAX.CUTTING SIZE | 980x1280mm | 1080x1480mm | 1180x1680mm | 1280x1880mm | 1480x2080mm | 1680x2180mm | 1680x2480mm |
| MIN.GRIPPER MARGINE | 10-15mm | 10-15mm | 10-15mm | 10-15mm | 10-20mm | 10-20mm | 10-20mm |
| MAX.CUTTING PRESSURE | 300tons | 350tons | 400tons | 450tons | 500tons | 500tons | 550tons |
| TABLE STROKE | 75mm | 75mm | 75mm | 95mm | 95mm | 95mm | 95mm |
| SHEET THICKNESS | Within 10mm Corrugated Within 3mm Carton Board | ||||||
| MAX.CUTTING SPEED | 4500 S/H 3300 S/H(PF) | 4200 S/H 300 S/H(PF) | 4000 S/H 3300 S/H(PF) | 3000 S/H 2700 S/H(PF) | 2100 S/H 2100 S/H(PF) | 2100 S/H 2100 S/H(PF) | 1800 S/H 1800 S/H(PF) |
| TOTAL WEIGHT | 15tons 16.5tons(S) 19.5tons(PF) | 17tons 19tons(S) 21tons(PF) | 19tons 22tons(S) 25tons(PF) | 27tons 30tons(SS) 33tons(PF) | 32tons(N) 35tons(SS) | 48tons(N) 54tons(SS) | 50tons(N) 56tons(SS) |
| REQUIRED POWER | 9.2KW(N) 11KW(SS) | 9.2KW(N) 14KW(SS) | 13KW(N) 18KW(SS) | 19KW(N) 24KW(SS) | 22KW(N) 29KW(SS) | 27KW(N) 35KW(SS) | 27KW(N) 35KW(SS) |
