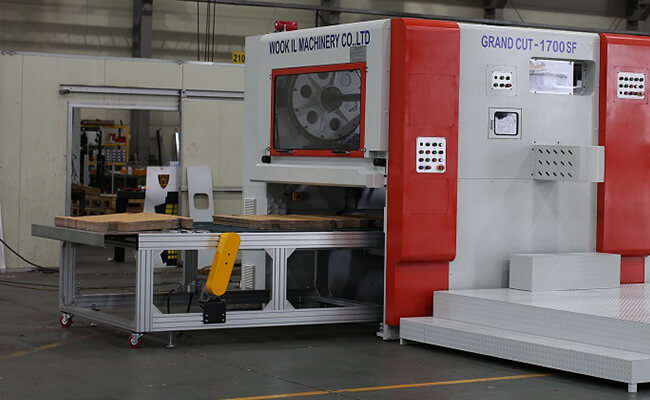

Automatic Die Cutter For Corrugated Board Wook IL WTNS-NSSF 1500, 1700, 1900, 2100, 2200, 2500
Automatic Lead Edge feeder with servo motor offering synergy of feed precision and drive technology for stable feeding and vacuum transport system provides accurate board transfer for perfect register from the feeder to the diecutter.
Manufacturer Wook IL
Product details

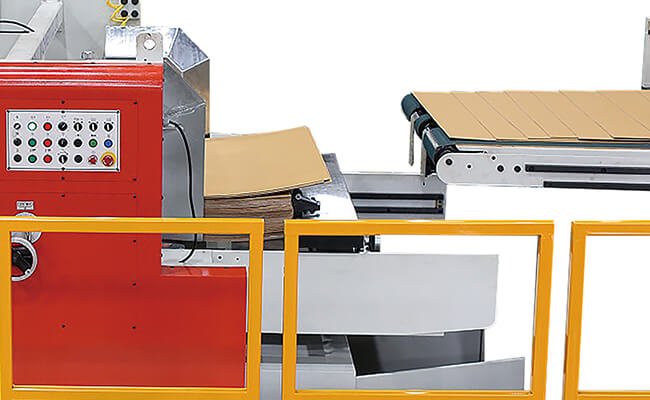

Feeding Section
- Lead Edge Feeding(Sun Feeder Type) with vacuum suction
- Precise feeding by front and side lay
- Motorized side guide and back stopper
- Servo controlled belt conveyor ensures stable and exact feeding to diecutting.
- Pre-loader
- 2 monitors to check paper’s flow

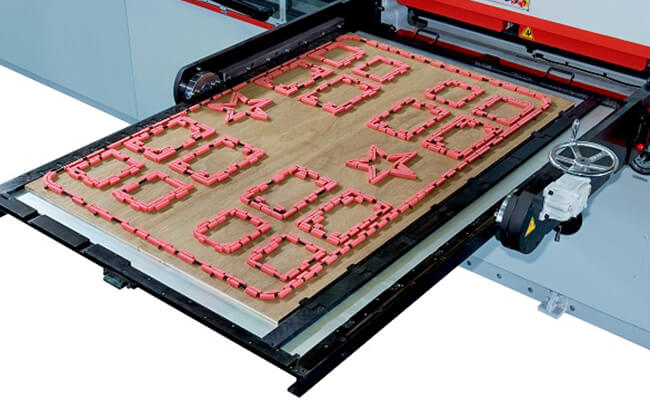

Diecutting Section
- Index Drive by Sankyo
- Hard and soft cutting plate system available
- Quick set center line system
- Easy chase order change by push button
- Air Ball System for cutting plate in & out easily
- Cutting pressure from 300 ton up to 550 ton according to machine size

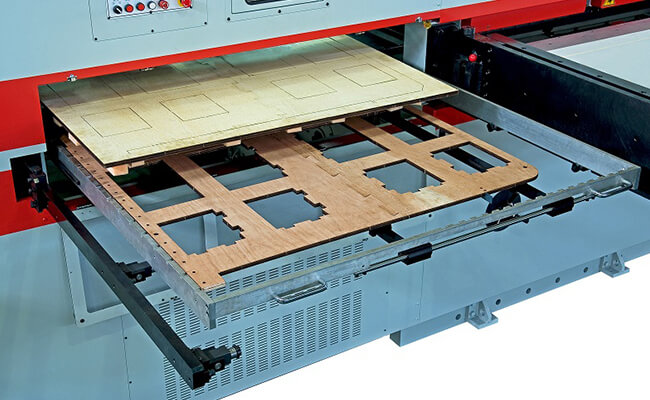

Stripping Section
- Centerline system for quick set-up
- Electric Clamp for male stripping form
- Triple action stripping: male, female & bottom pin stripping
- Scrap conveyor
- Lead edge removal unit and conveyor
- Possible 100% stripping by Grip Edge Removal
Delivery Section
- Batch delivery system
- Set up the bundle number
- Side and Front Jogger ensures perfect stacks
- Larger driving wheel with 8 gripper bars ensures the machine more stability and speed
- Other types of delivery unit available
Specifications
| Model | WTNS-NSSF 1500 | WTNS-NSSF 1700 | WTNS-NSSF 1900 | WTNS-NSSF 2100 | WTNS-NSSF 2200 | WTNS-NSSF 2500 |
|---|---|---|---|---|---|---|
| MAX.SHEET SIZE | 1100x1500mm | 1200x1700mm | 1300x1900mm | 1500x2100mm | 1700x2200mm | 1700x2500mm |
| MIN.SHEET SIZE | 550x750mm | 600x850mm | 650x950mm | 750x1050mm | 850x1100mm | 850x1250mm |
| MAX.CUTTING SIZE | 1080x1500mm | 1180x1700mm | 1280x1900mm | 1480x2100mm | 1680x2200mm | 1680x2500mm |
| MIN.GRIPPER MARGINE | 10-15mm | 10-15mm | 10-15mm | 10-15mm | 10-20mm | 10-20mm |
| MAX.CUTTING PRESSURE | 350tons | 400tons | 450tons | 500tons | 500tons | 550tons |
| TABLE STROKE | 75mm | 75mm | 95mm | 95mm | 95mm | 95mm |
| SHEET THICKNESS | Within 10mm Corrugated | |||||
| MAX.CUTTING SPEED | 6000 S/H | 5500 S/H | 4500 S/H | 4000 S/H | 3000 S/H | 2100 S/H |
| TOTAL WEIGHT | 28tons | 30tons | 38tons | 45tons | 50tons | 58tons |
| REQUIRED POWER | 53KW | 55KW | 58KW | 63KW | 65KW | 71KW |
