Corrugated Box Machine Aopack BM2508 SE
- Only need 30 seconds to change the order, one person is enough for operating, saving Labour saving
- Cardboard size up to 2500mm width with unlimited length, oversized cardboard boxes is available
- Have the ability to making dozens of orders with different sizes and different box types every single day
- All settings can be entered through a touch screen within 1 minute.
- No additional tools , servo drive to complete all settings.
- Use of powered (servo motor) knives making the edges of the carton more beautiful and flat.
Product details
BM2508-SE is a fully automatic multifunctional box maker with horizontal slotting and scoring, vertical slitting and creasing, horizontal cutting all in one compact machine.
Compared to BM2508-Plus model, the BM2508-SE model is an economic version machine, which is of great significance to all users under the epidemic. To reduce budget and expenses, it is equipped with a 900mm lead edge feeder, 2 vertical creasing wheels, and no handhole die cutting module.
Specifications
| Model | BM2508 Plus | BM2508 SE | BM3000 |
|---|---|---|---|
| Corrugated board type | Sheets Or Fanfold (Single Double wall) | Sheets (Single Double wall) | Sheets Or Fanfold (Single Double wall) |
| Cardboard thickness | 2-10mm | 2-10mm | 2-10mm |
| Cardboard density range | Up to 1200g/m² | Up to 1200g/m² | Up to 1200g/m² |
| Max.board size | 2500mm width x unlimited length | 2500mm width x unlimited length | 3000mm width x unlimited length |
| Min.board size | 200mm width x 650mm length | 200mm width x 650mm length | 300mm width x 650mm length |
| Production Capacity | Appr.7-10 pcs/minute, Depends on size and box style | Appr.7-10 pcs/minute, Depends on size and box style | Appr.8-12 pcs/minute, Depends on size and box style |
| Slotting Knife | 2 pcs *500mm Length | 2 pcs *500mm Length | 2 pcs *500mm Length |
| Vertical Cutting knife | 4 | 4 | 4 |
| Scoring/Creasing wheel | 4 | 2 (Option 4) | 4 |
| Horizontal Cutting knife | 1 | 1 | 1 |
| Power supply | BM2508-Plus 380V±10%，Max. 7kW, 50/60 Hz | BM2508-SE 380V±10%，Max. 6.2kW, 50/60 Hz | BM3000 380V±10%，Max. 7.7kW, 50/60 Hz |
| Air Pressure | 0.6-0.7MPa | 0.6-0.7MPa | 0.6-0.7MPa |
| Dimension | 3540(W) * 2050（L）* 2090mm(H) | 3370(W) * 1800（L）* 2000mm(H) | 3650(W) * 1950（L）* 2090mm(H) |
| Gross Weight | Appr.3500Kg | Appr.2800Kg | Appr.3500Kg |
| Automatic paper feeding | Lead edge feeder 1400mm | Lead edge feeder 900mm | Lead edge feeder 1400mm |
| Handhole on box sides | Hand hole module size (120*120mm) | NO | Hand hole module size (120*120mm) |
| Air Consumption | 75L/Min | 40L/Min | 75L/Min |

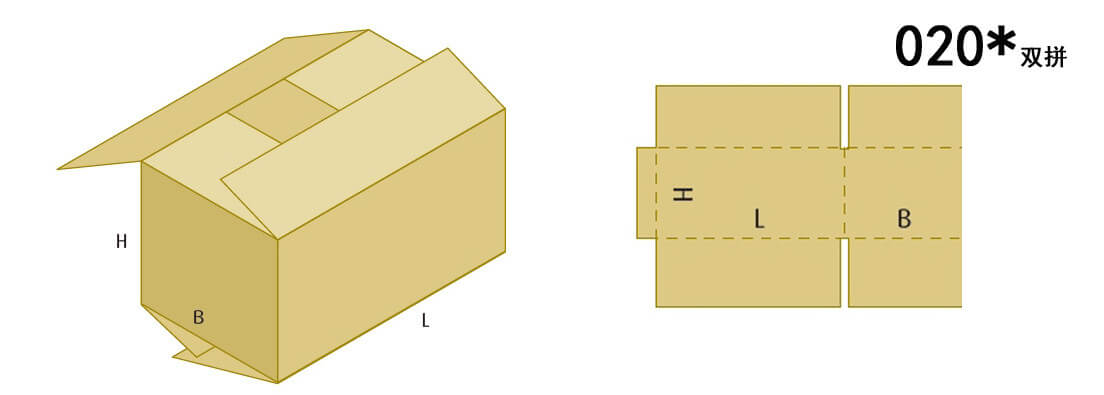

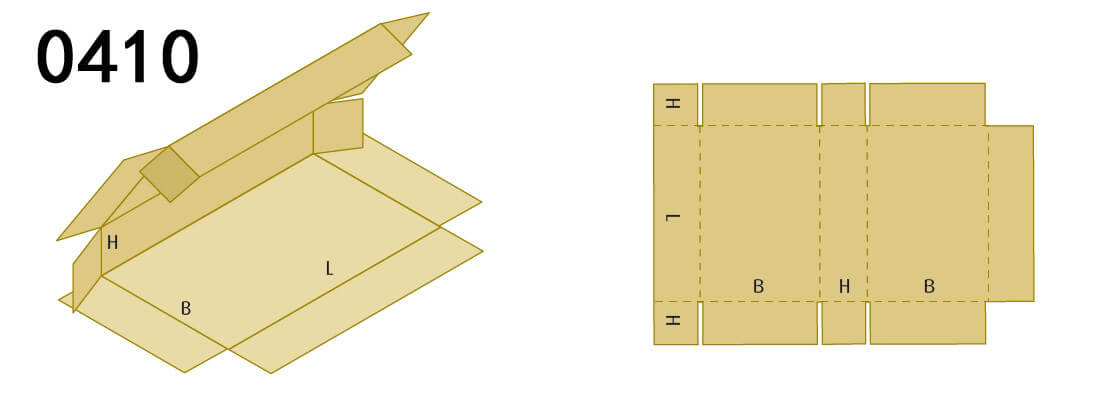

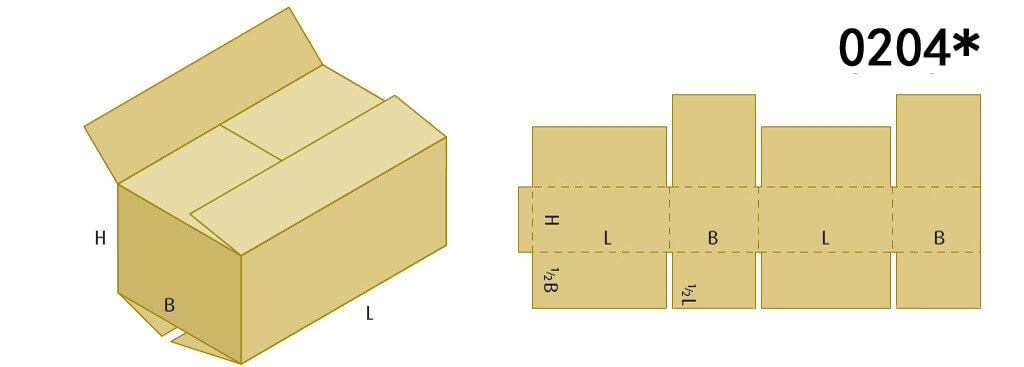

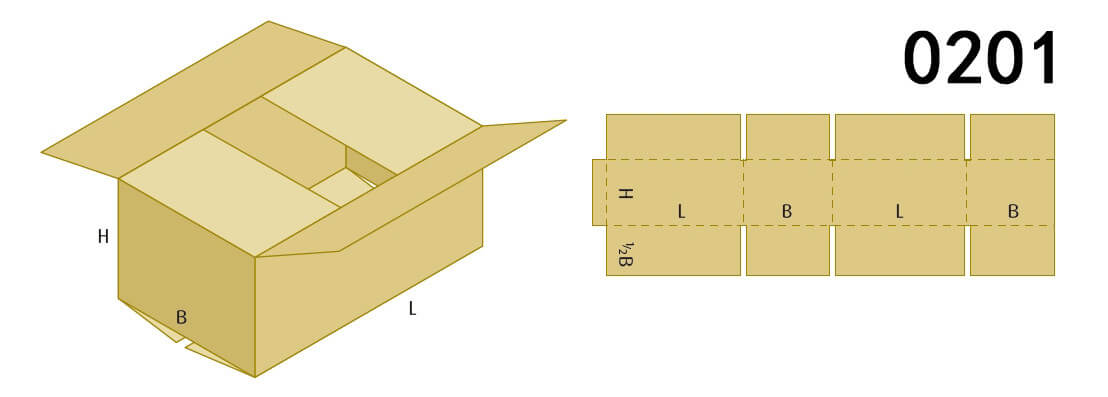

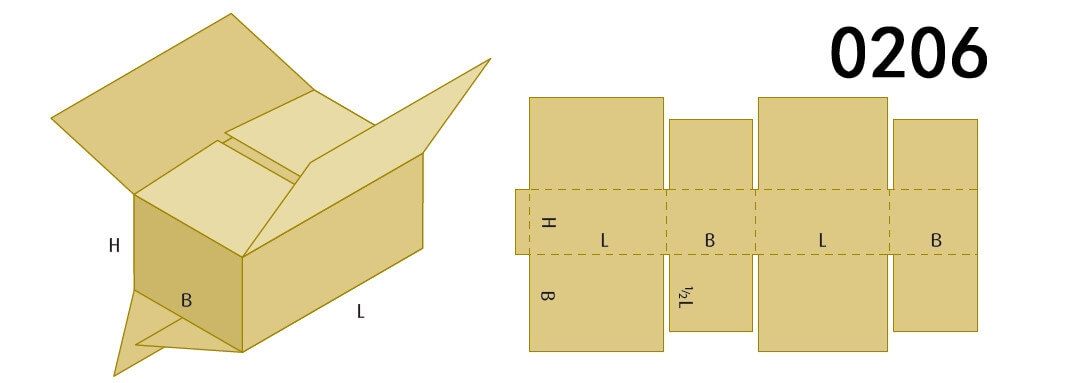

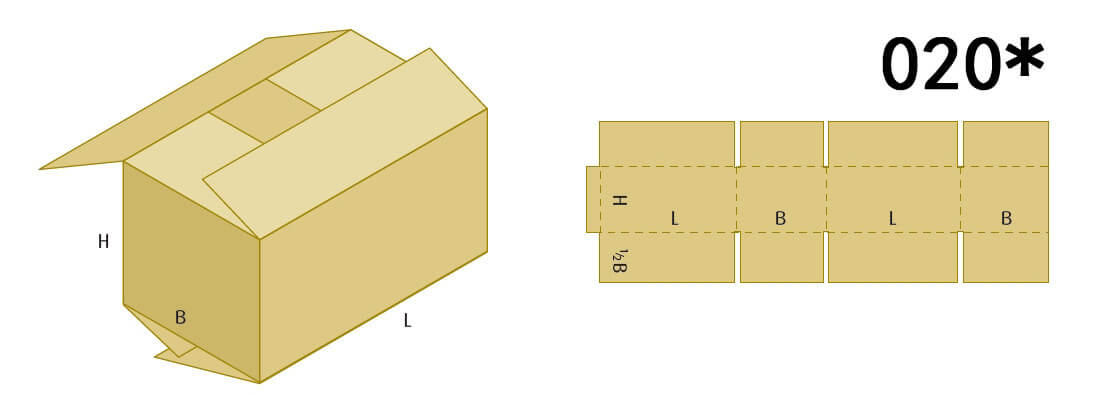

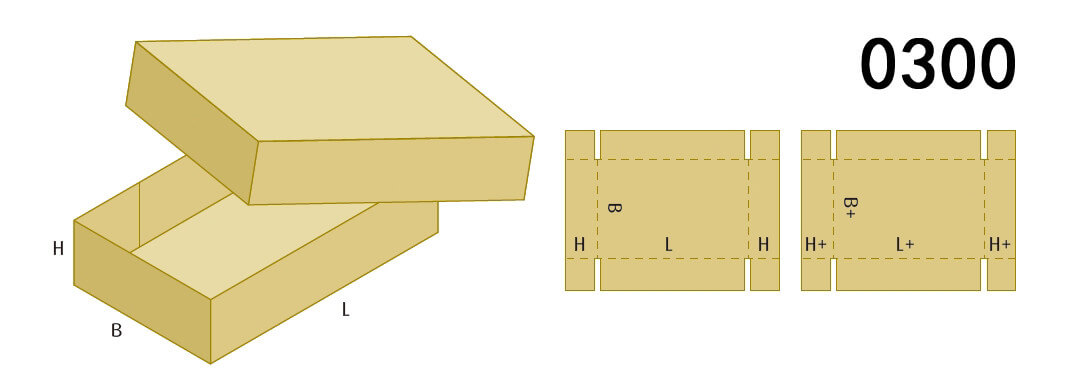

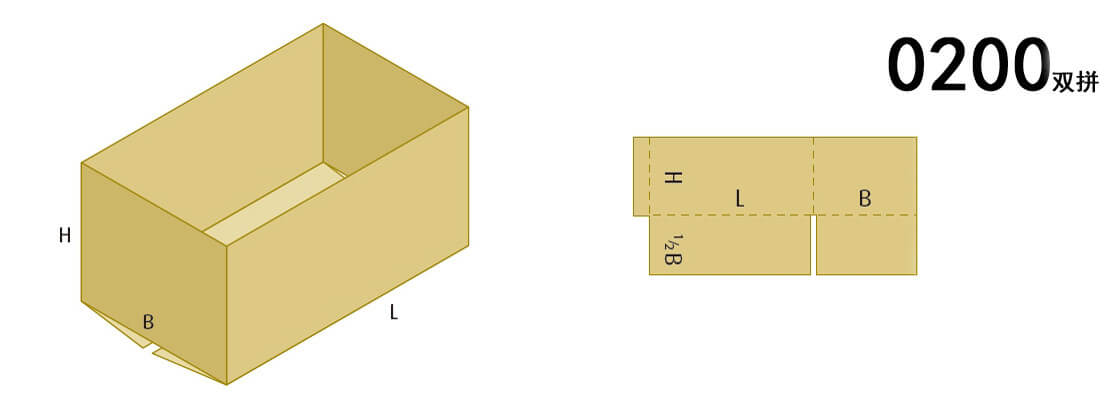

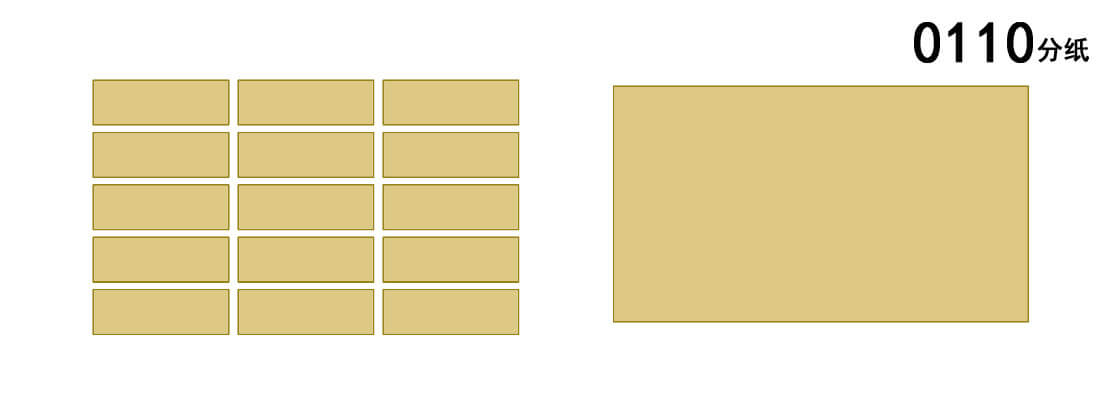

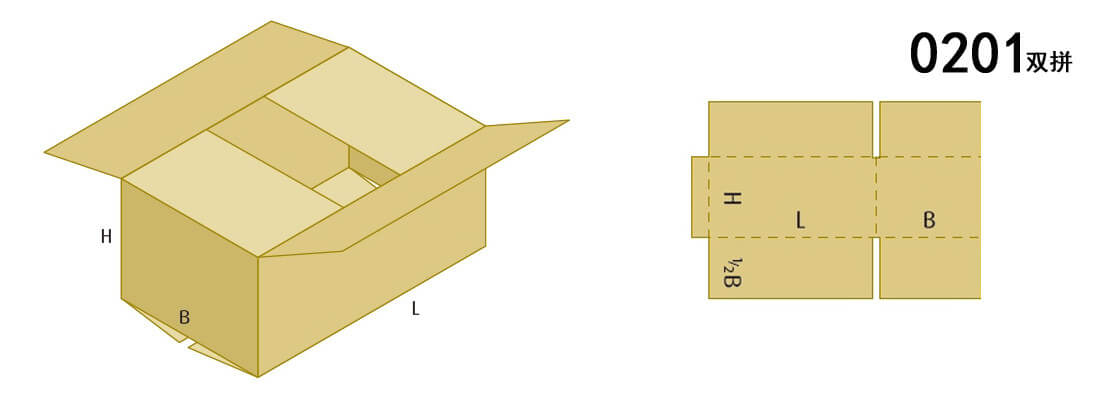

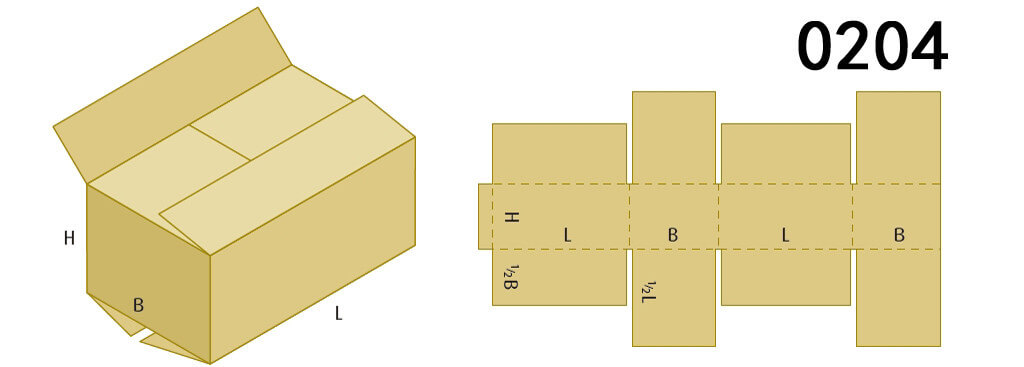

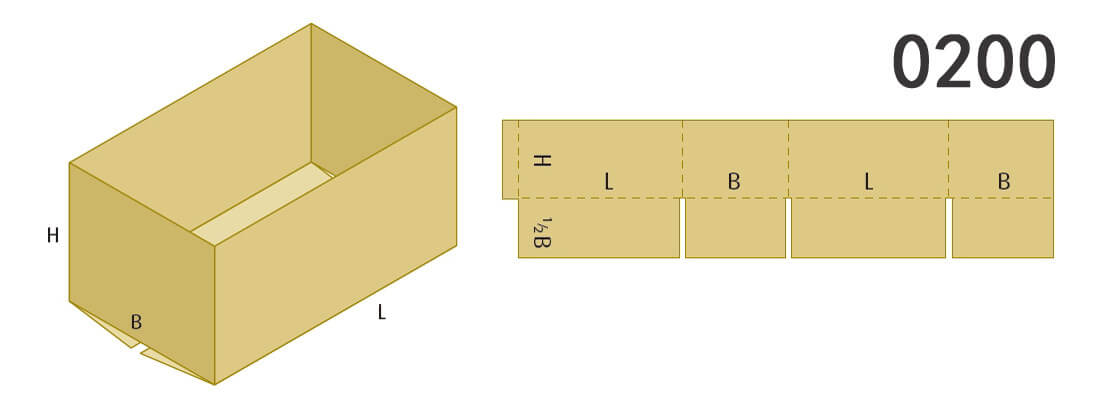

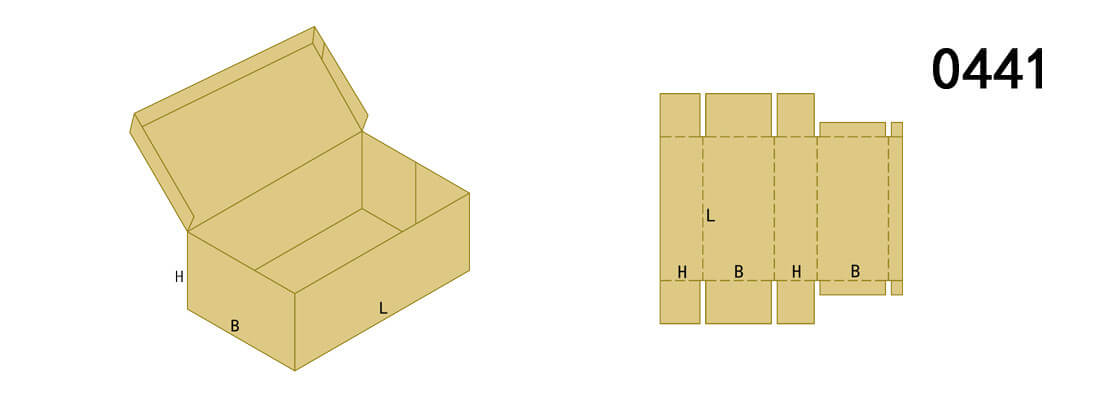

| Box styles | More than 60 Fefco codes | About 27 （36）Fefco codes | More than 60 Fefco codes |
Application
BM2508-SE corrugated box machine is an economic version box making machine, suitable for box plants with small quantity orders and big size cartons, which effectively solves the problem of scattered orders.
For years, Aopack is committed to providing customized packaging solutions for box plants as well as end-users, which is available for a wide range of many areas, such as furniture, hardware accessories, e-commerce logistics, many other industries, and so on.
Major Functions Of Corrugated Box Machine BM2508 SE
Compared with BM2508-Plus, BM2508-SE is an economic version machine with horizontal slotting and scoring, vertical slitting and creasing, cross trimming, and inline gluing option all in one compact machine.

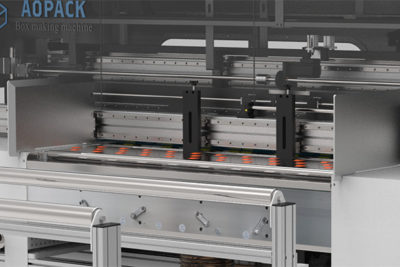

Cardboard Feeding
- 20-50 sheets can be loaded, thickness ranging from 10 to 2 mm.
- A continuous cardboard feeding system with a vacuum pump makes cardboard feeding more accurate.

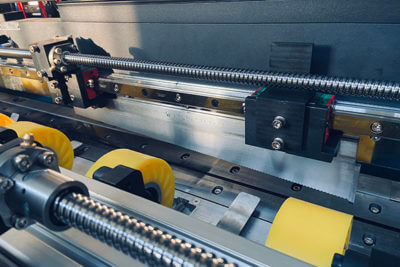

Horizontal Slotting & Scoring
- Two 500mm symmetrical slotting knives
- Slotting knife and creasing beam integrated design

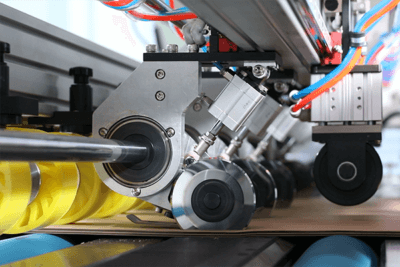

Vertical Scoring & Slitting
- 4 Cutting knives, rotated by the servo motor to make the side of the carton box more beautiful and flat
- 2 Scoring/Creasing (Option 4)

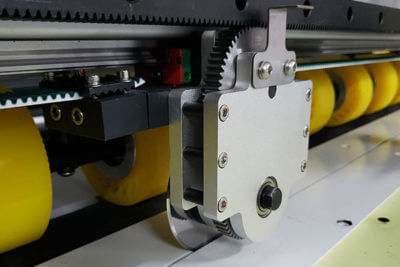

Cross Cutting System
- Cut off extra cardboard without an additional paper separator

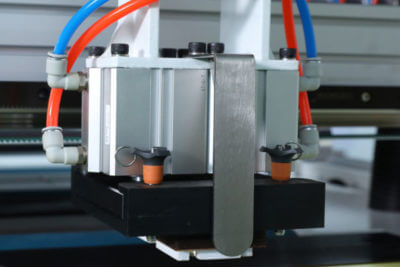

Die Cutting System
- Hand hole, vent hole, special-shaped rounded corners.
- Cheap module and easy to replace.

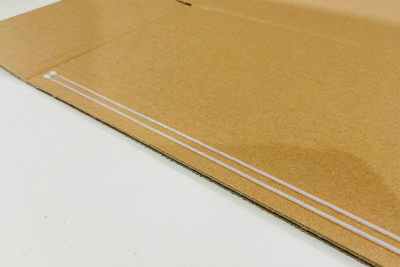

Inline Gluing System
- Inline cold gluing auto application, no need for extra gluing machine.
- Highest efficiency and versatility.

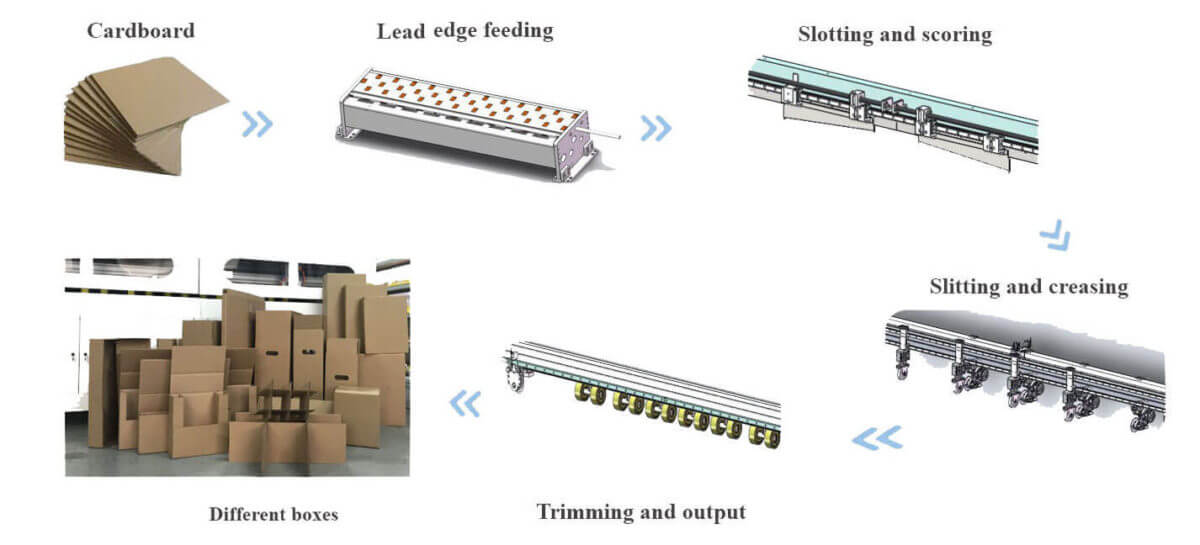

Corrugated Box Machine BM2508 SE Workflow
