Carton Box Making Machine Aopack BM2508-Pro
- Independent motor control, appr.1-6s quick changeover time
- Max. 2500 mm cardboard width with unlimited length
- Customized box styles, inconsistent creasing, all in one pass.
- With knife sharpening function. Extended slitting knife working life

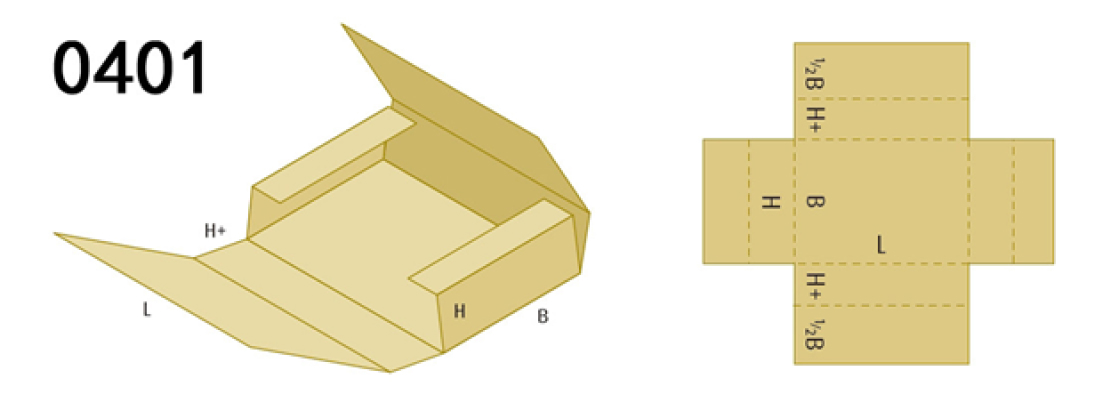

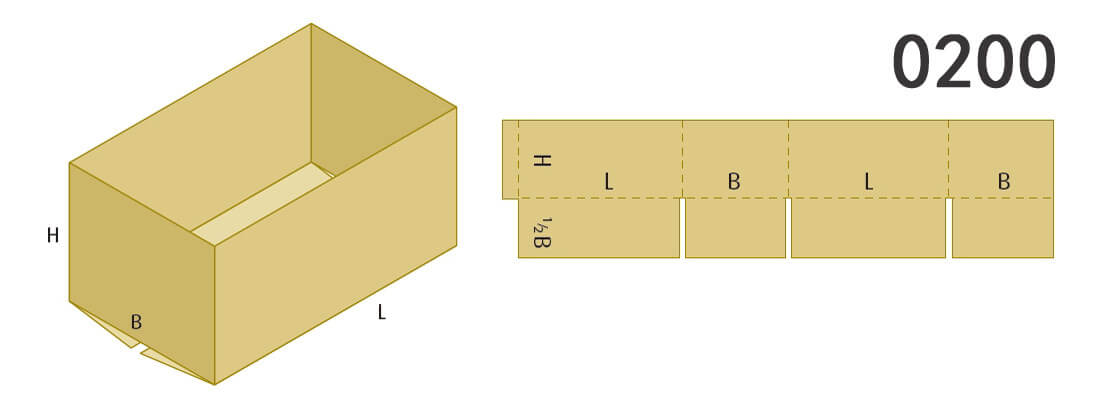

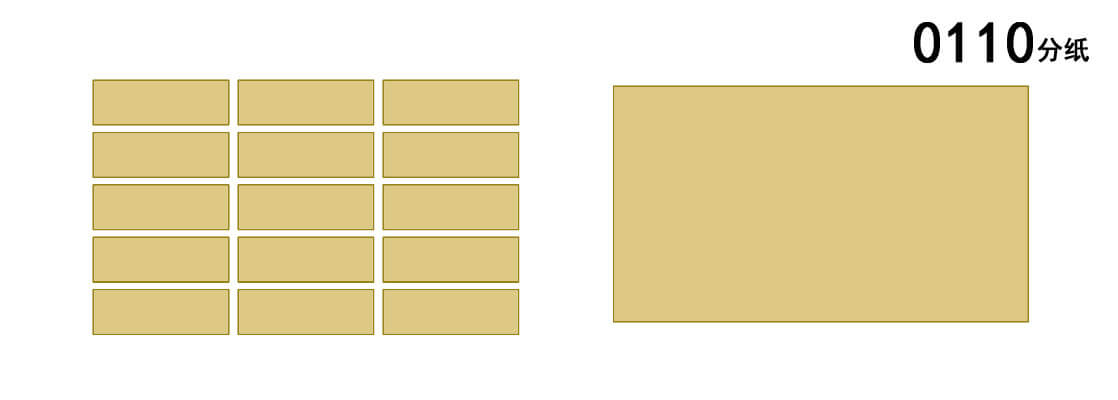

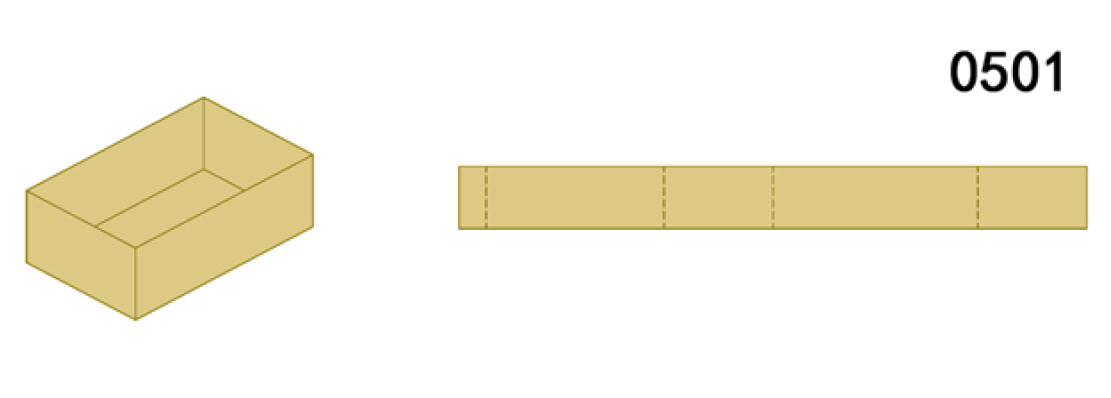

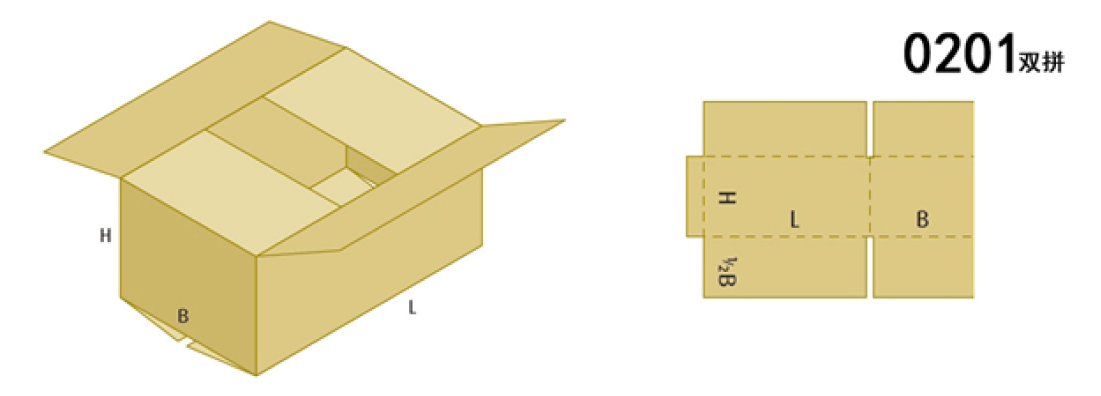

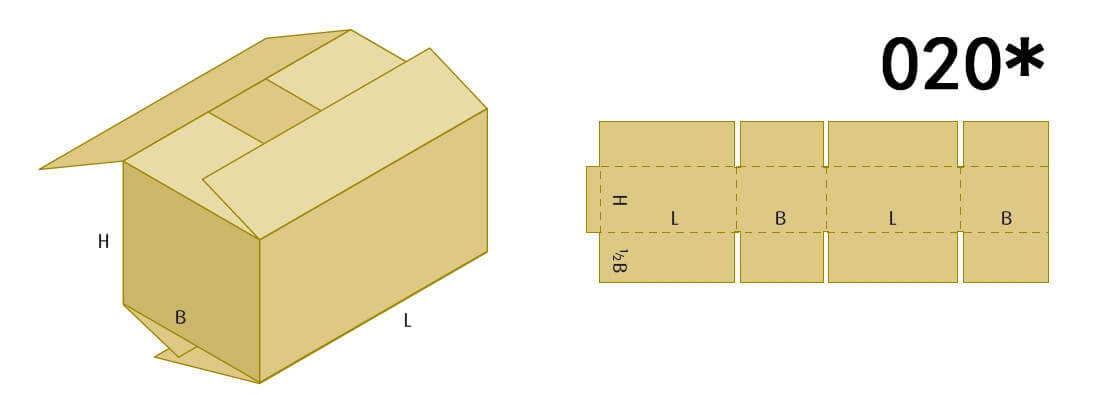

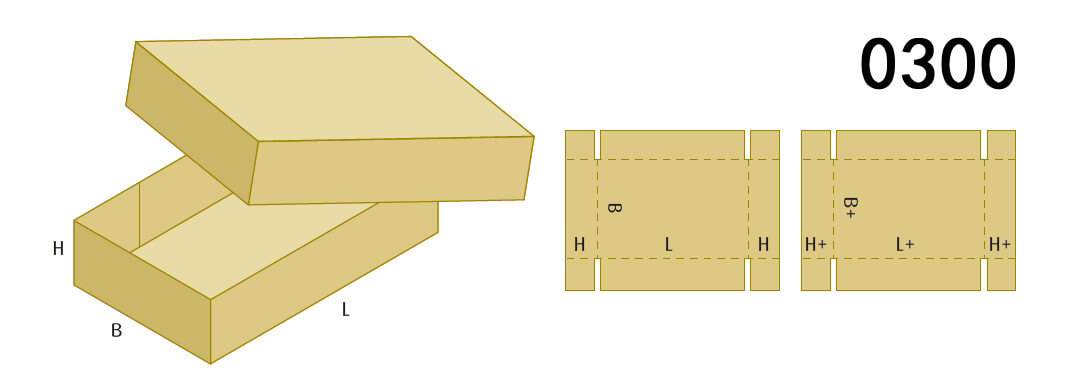

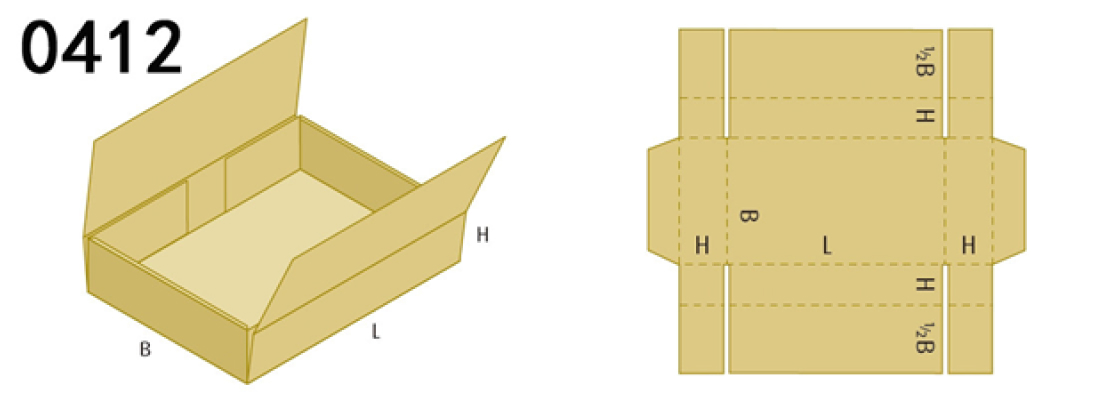

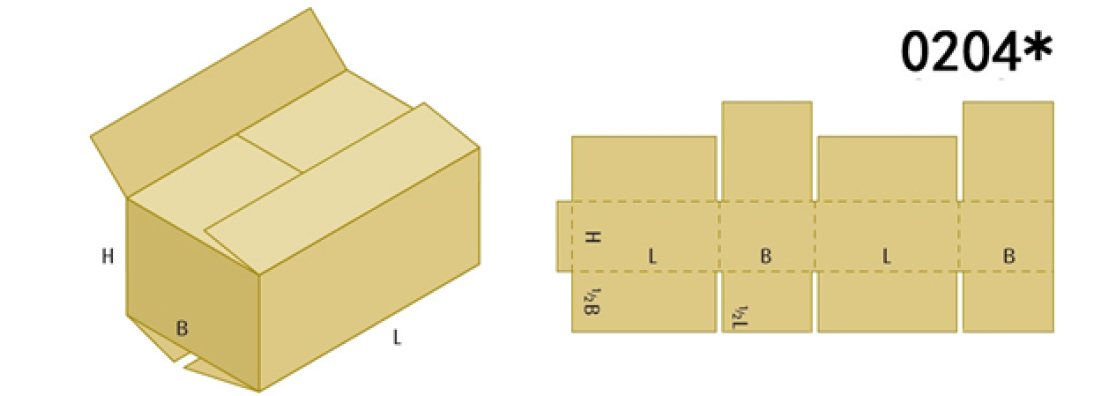

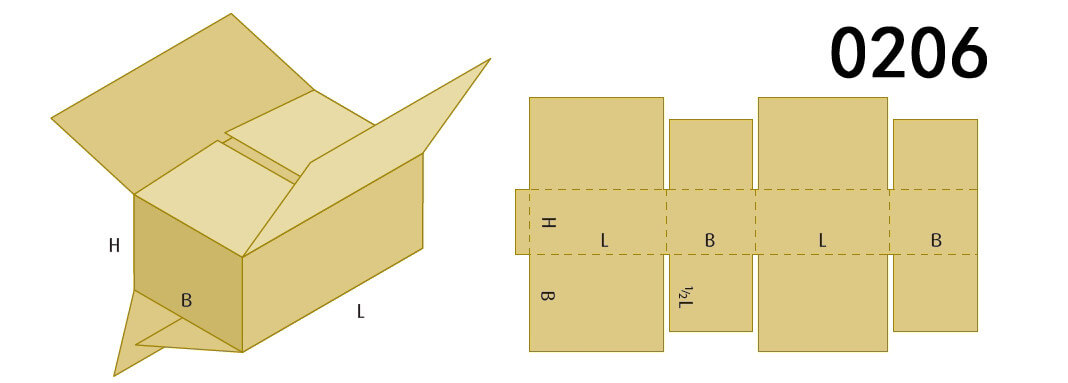

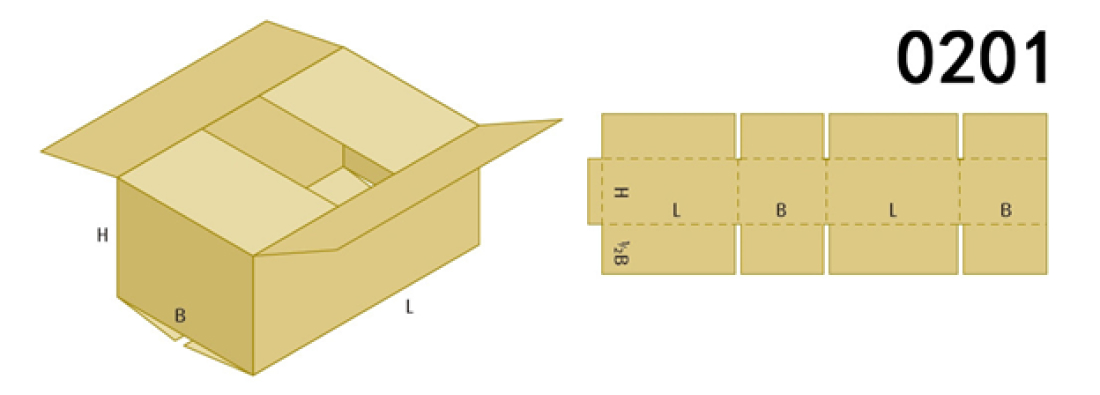

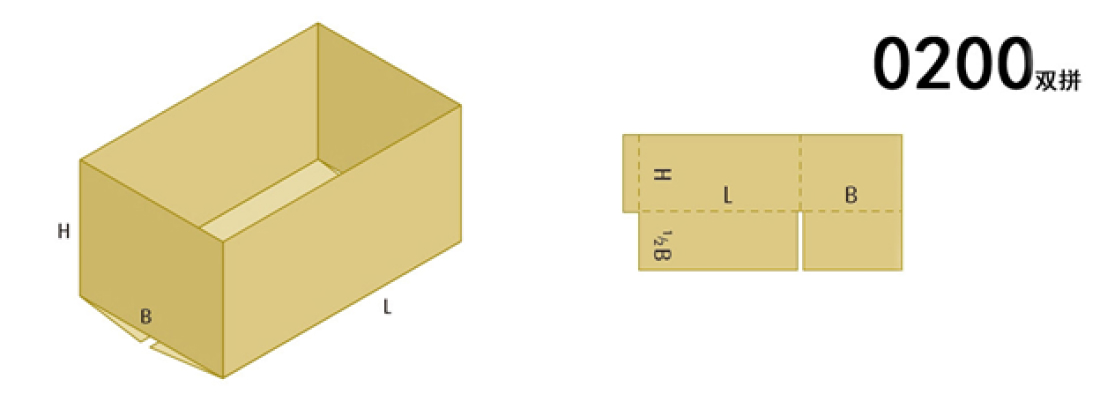

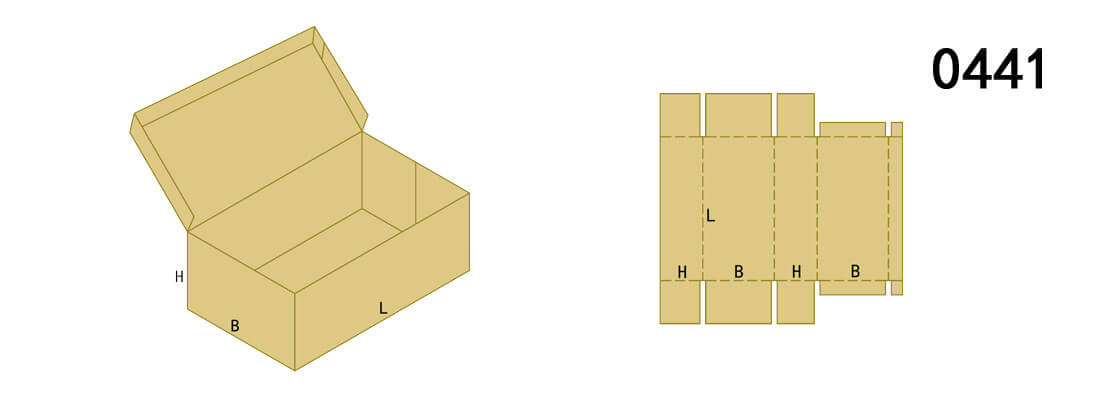

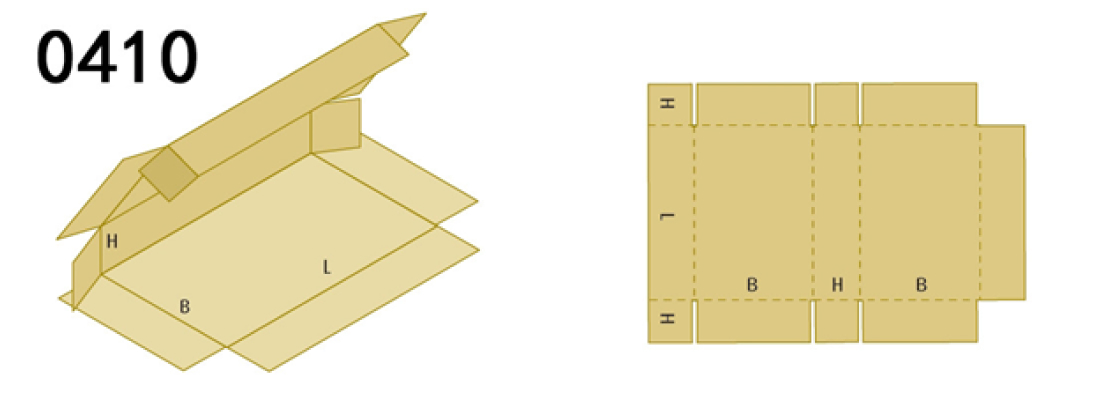

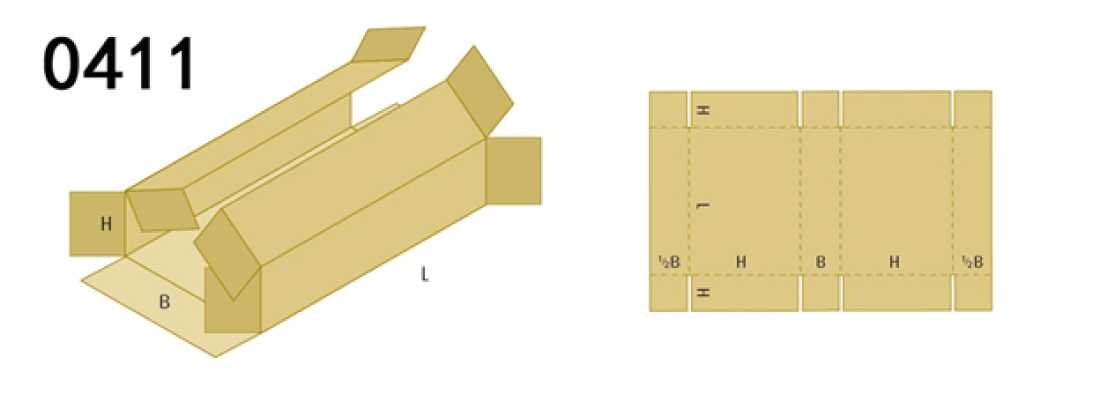

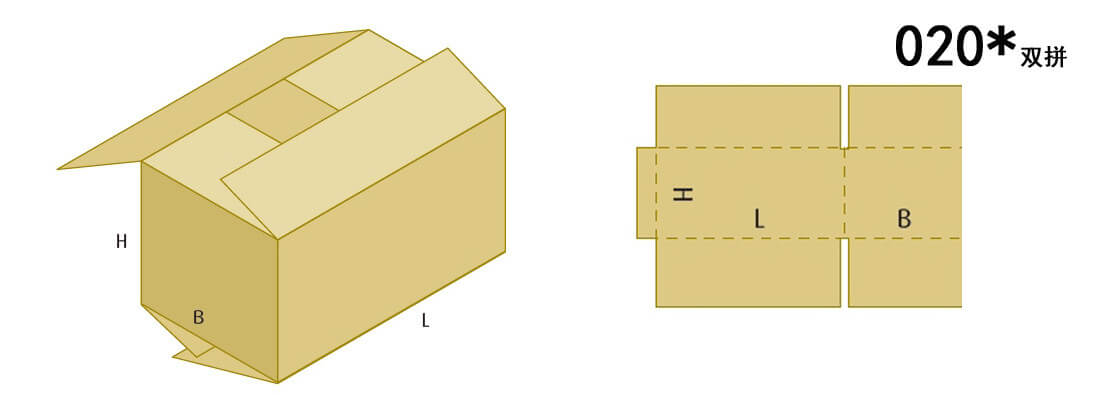

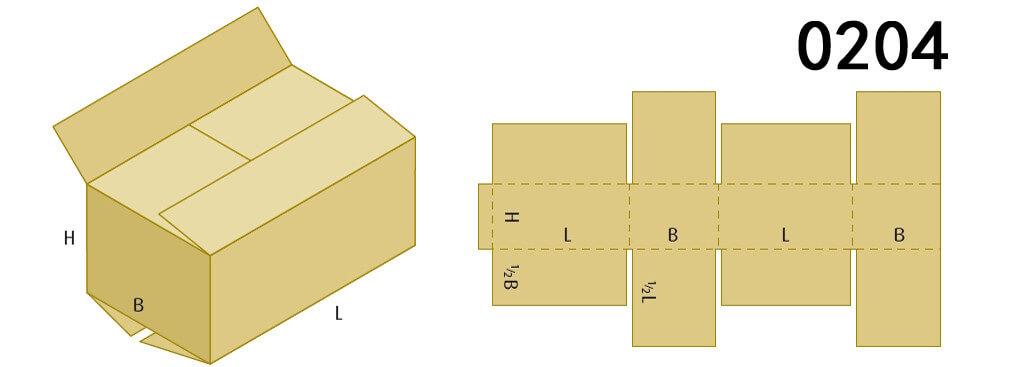

- Different sizes and different box types at will.
Product details
Cardboard Box Making Machine BM2508-Pro is a multifunctional packaging box making machine with cardboard feeding, horizontal slotting and scoring, vertical slitting and creasing, horizontal trimming, handle die-cutting, gluing, printing. It is a upgrade version of BM2508-Plus Carton Box Making Machine. All independent motor control, changeover time is about 1-6s. Upgraded version of creasing wheel can effectively prevent the bursting of creasing line.
Specifications
| Model | BM1800-Mini | BM2508-Plus | BM2508-Pro | BM3000-HD | |
|---|---|---|---|---|---|
| Cardboard Type | Single wall/Double wall | Single wall/Double wall | Single wall/Double wall | Single/Double/ Triple wall (AAA Heavy Duty Cardboard) | |
| Cardboard Thickness | 2-12mm | 2-10mm | 2-12mm | 2-16mm | |
| Cardboard Gram | 1400g/m² | 1200g/m² | 1200g/m² | 2400g/m² | |
| Max. Board Size | 1800mm(W) * Unlimited Length | 2500mm(W) * Unlimited Length | 2500mm(W) * Unlimited Length | 3000mm(W) * Unlimited Length | |
| Min. Board Size | 140mm(W) * 600mm(L) | 200mm(W) * 650mm(L) | 200mm(W) * 650mm(L) | 300mm(W) * 660mm(L) | |
| Pre-Creasing Wheel | × | × | × | 4 | |
| Vertical Creasing | |||||
| Quantity | 6 | 4 | 4 | 4 | |
| Min. Distance | 20mm (Or 25mm) | 75mm(Standard) 20mm(Optional) | 30mm | 5mm | |
| Inconsistent Creasing | ● | × | ● | ● | |
| Vertical Slitting | |||||
| Quantity | 6 | 4 | 4 | 4 | |
| Min. Distance | 20mm (Or 25mm) | 75mm | 36mm | 36mm | |
| Knife Sharpening Function | × | × | ● | ● | |
| Cross Cutting | |||||
| Quantity | 1 | 1 | 1 | 1 | |
| Up and Down | × | × | × | ● | |
| Glue Flap Crush | × | × | Optional | ● | |
| Independent Motor Control, Quick Changeover Time | ● | × | ● | ● | |
| Auxiliary Paper Output Roller | × | × | ● | ● | |
| Touchscreen | Leadshine | Flexem | Flexem | Siemens | |
| Power Supply | 380V±10%，Max 7kW | 380V±10%，Max 8kW | 380V±10%，Max 8kW | 380V±10%，Max 10kW | |
| Machine Size | 2500(W) * 1500(L) * 2030(H)mm | 3610(W) * 2050(L) * 2090(H)mm | 3610(W) * 2050(L) * 2090(H)mm | 3820(W) * 2060(L) * 1970(H)mm | |
| Machine Weight | Appr. 1848kg | Appr. 3300kg | Appr. 3400kg | Appr. 4500kg | |
Carton Box Machine Application
Automatic Cardboard Box Making Machine BM2508-Pro is a fully automatic carton box making machine, suitable for box plants with small quantity orders and big-size cartons, which effectively solves the problem of scattered orders.
It can also provide on-demand corrugated packaging solutions for box factories, furniture, hardware accessories, e-commerce logistics, and other industries. Customized packaging solutions can be designed and provided according to customers’ special requirements.
Standard Configuration
- 1 pcs paper feeding bracket
- 2 pcs 500mm slotting knife
- 1 pcs horizontal scoring beam
- 4 pcs vertical creasing wheels
- 4 pcs vertical slitting knives
- 1 pcs cross cutting knife
- 1 pcs handle die-cutting module
Major Functions of Carton Box Machine BM2508-Pro

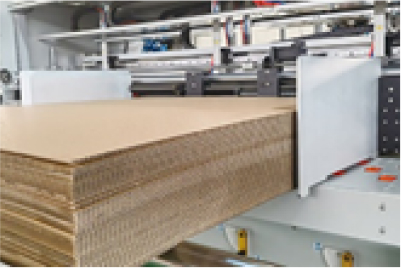

Cardboard Feeding
- 20-50 sheets can be loaded, thickness ranging from 10 to 2 mm.
- A continuous cardboard feeding system with a vacuum pump makes cardboard feeding more accurate.

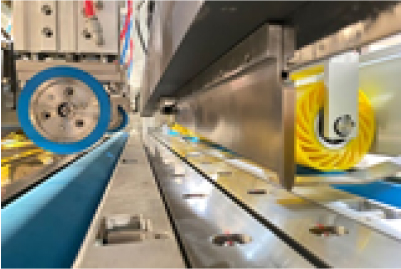

Horizontal Slotting & Scoring
- Two 500mm symmetrical slotting knives
- Slotting knife and creasing beam integrated design

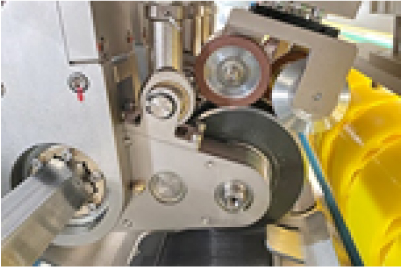

Vertical Slitting
- 4 vertical slitting knives, rotated by the servo motor to make the side of the carton box more beautiful and flat

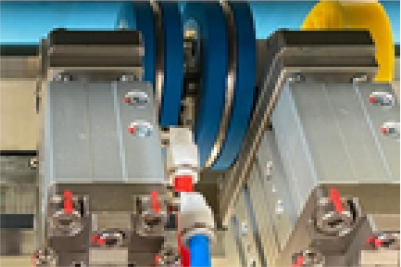

Vertical Creasing
- Cut off excess cardboard without an additional paper separator

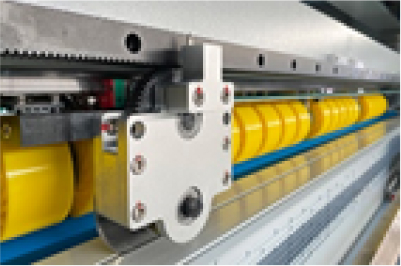

Cross Cutting System
- Cut off extra cardboard without an additional paper separator

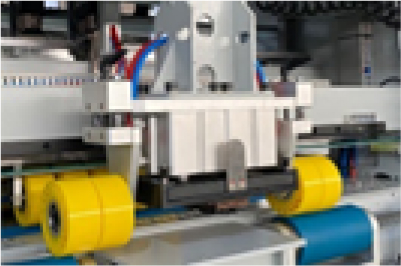

Die Cutting System
- Hand hole, vent hole, special-shaped rounded corners.
- Cheap module and easy replacement
Carton Box Making Machine BM2508-Plus Workflow
