Carton Box Making Machine 2 Aopack BM2508-Plus
- Labor-saving, money-saving.
- Easy-operated, all the settings just need seconds.
- Fully automatic, no need to adjust the knife manually.

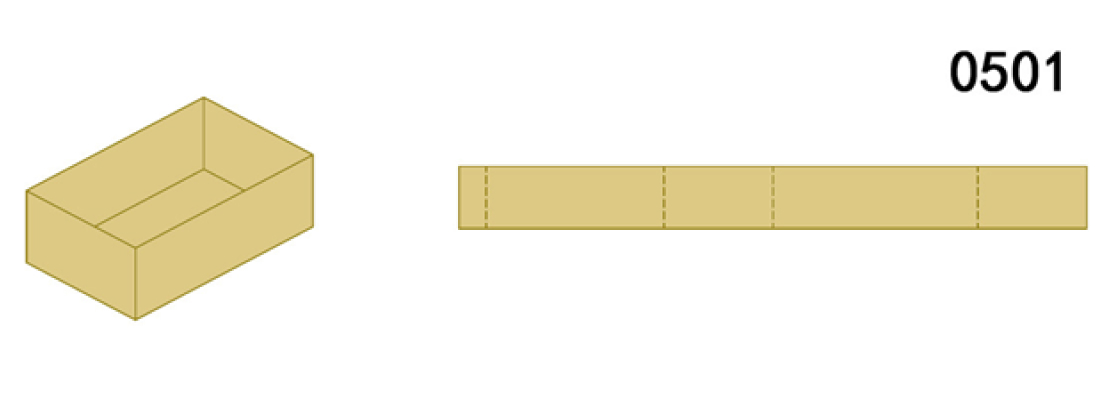

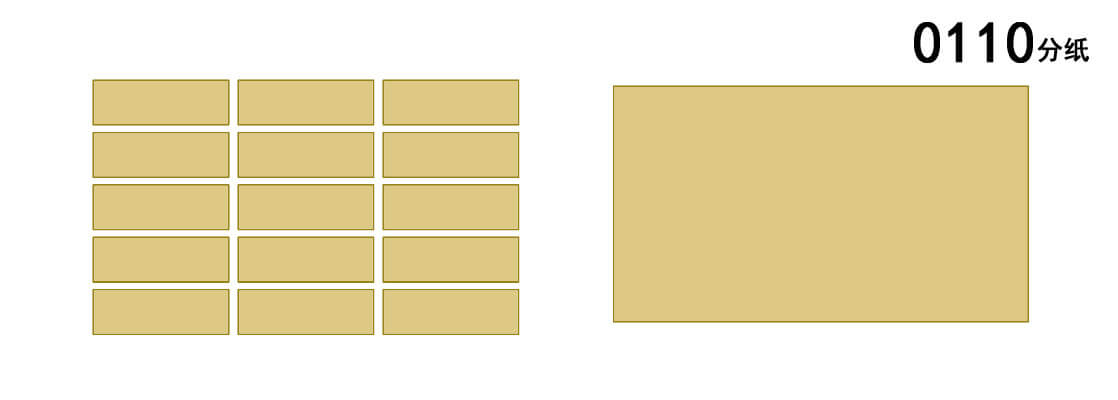

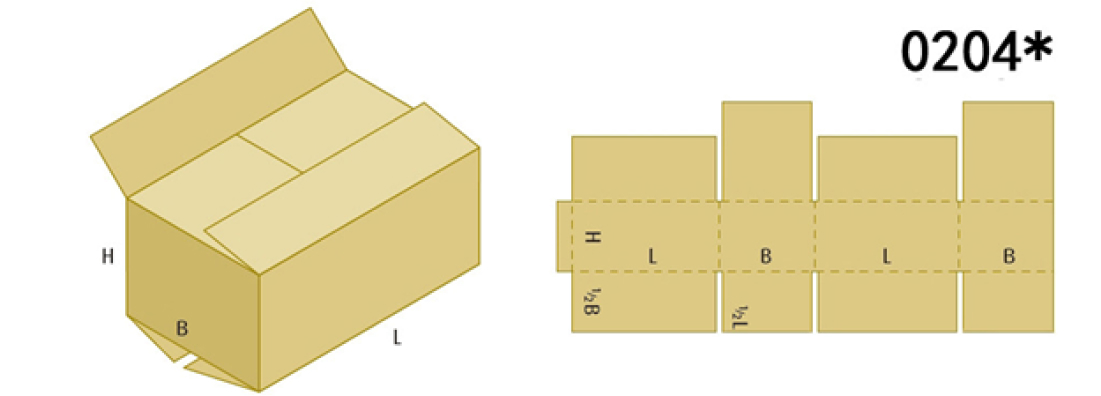

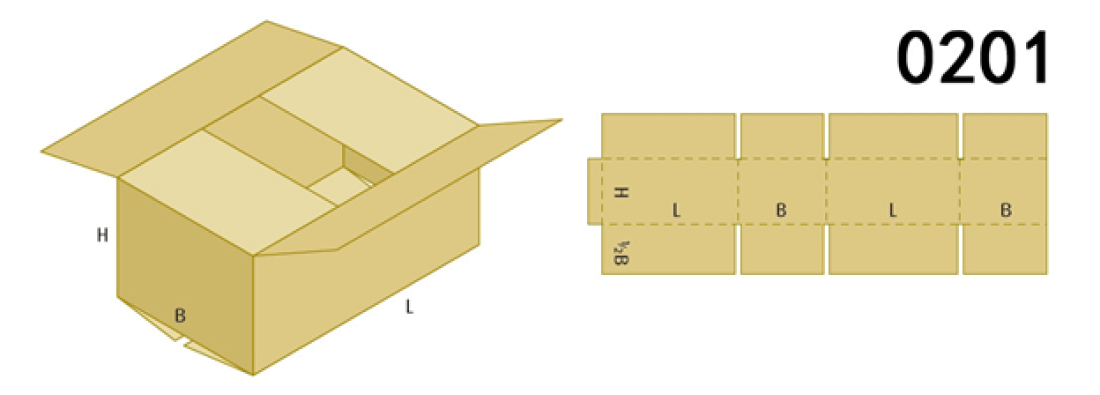

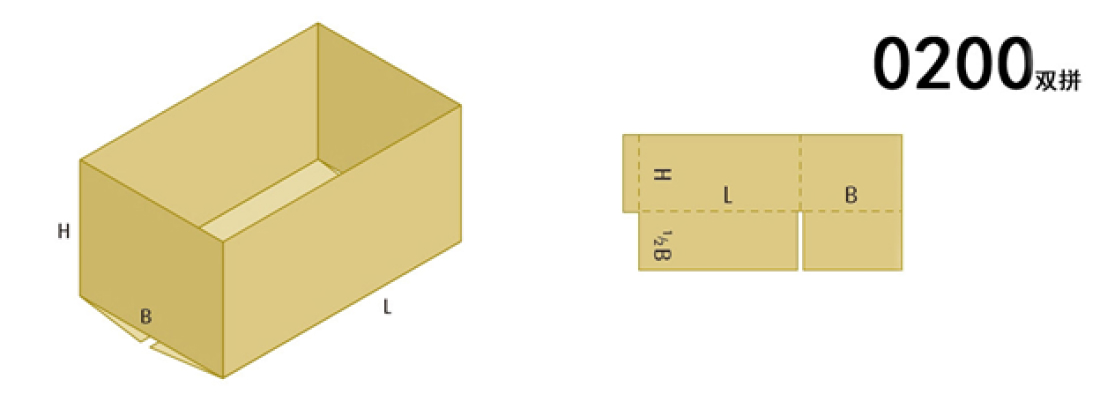

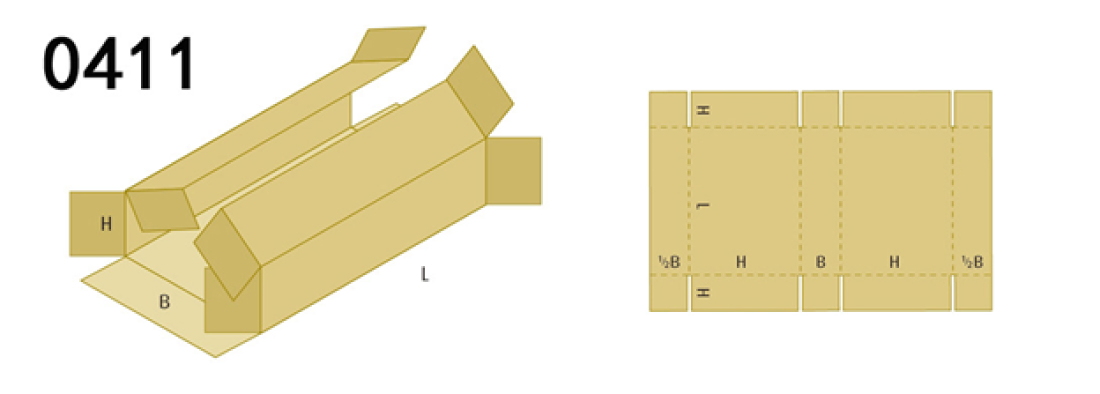

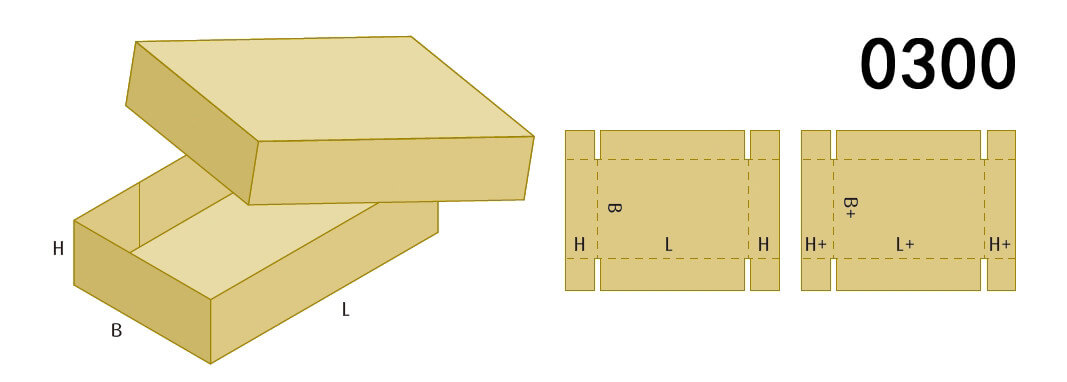

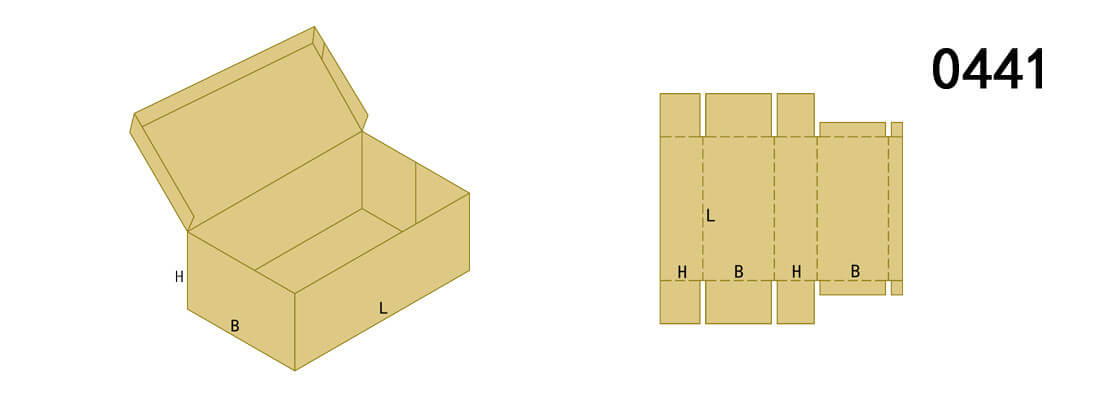

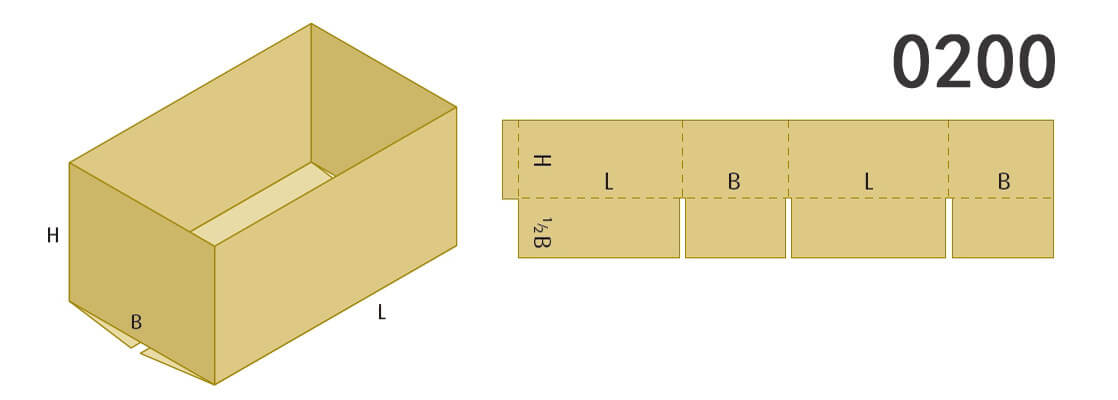

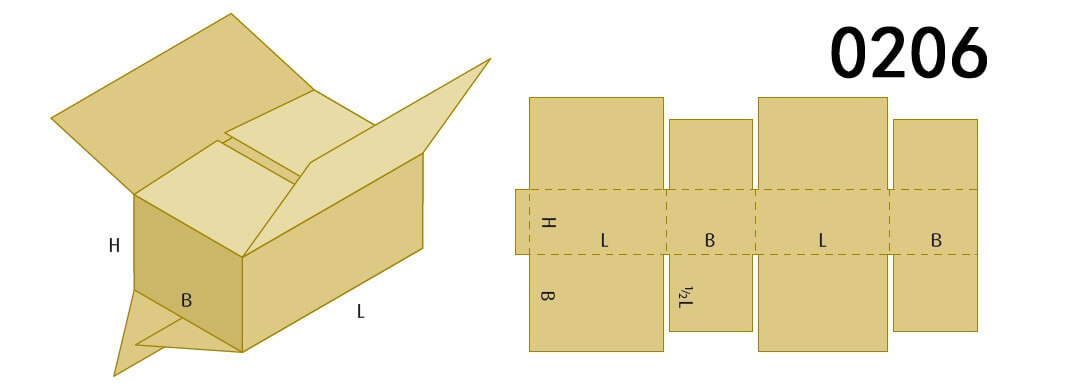

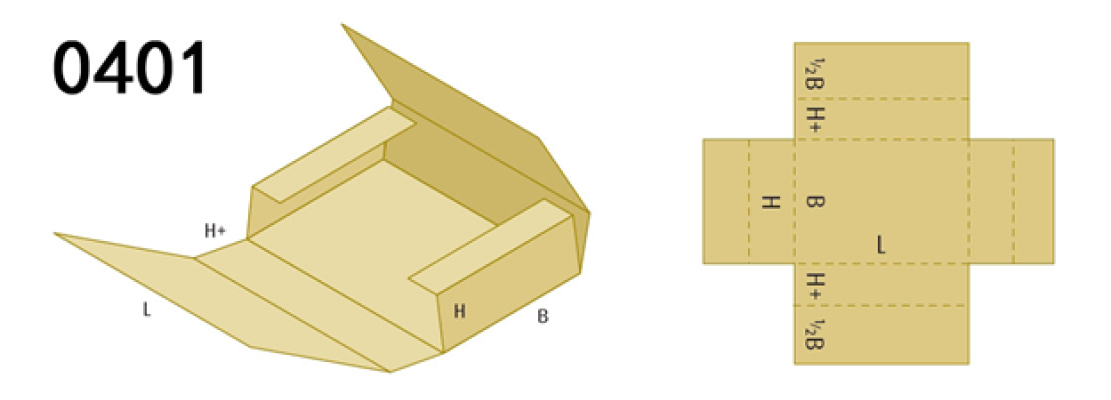

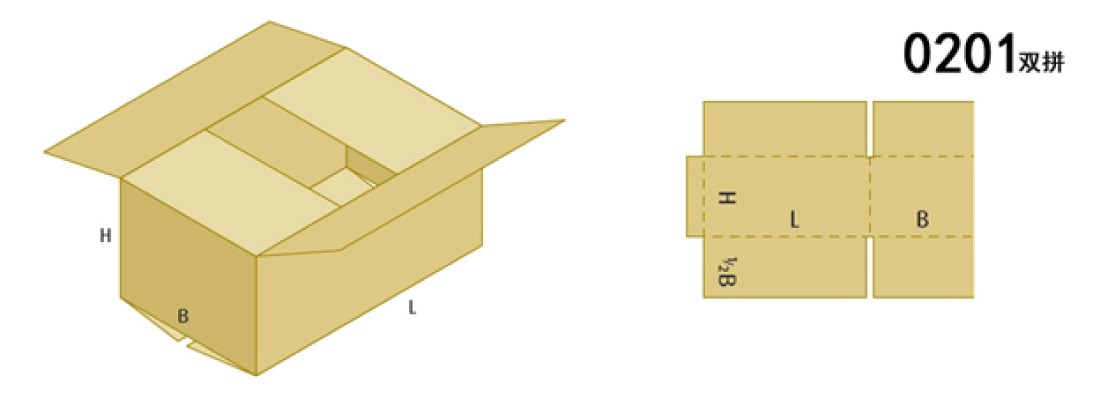

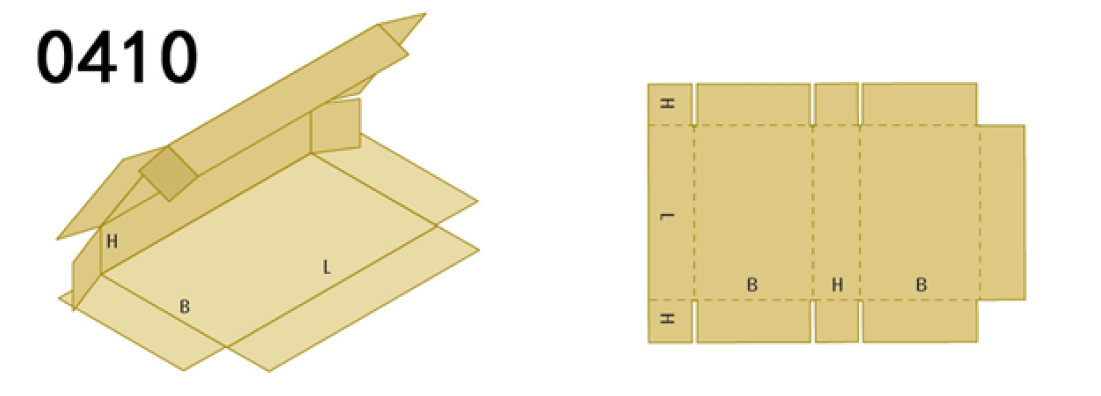

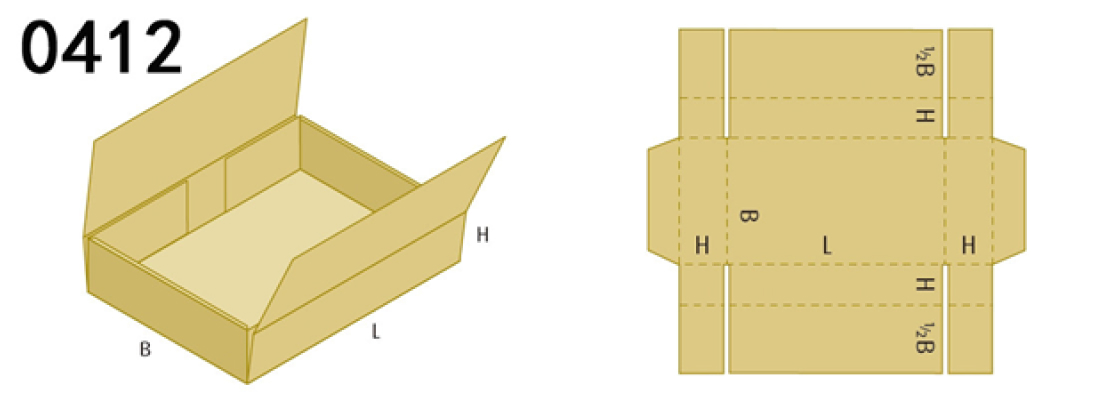

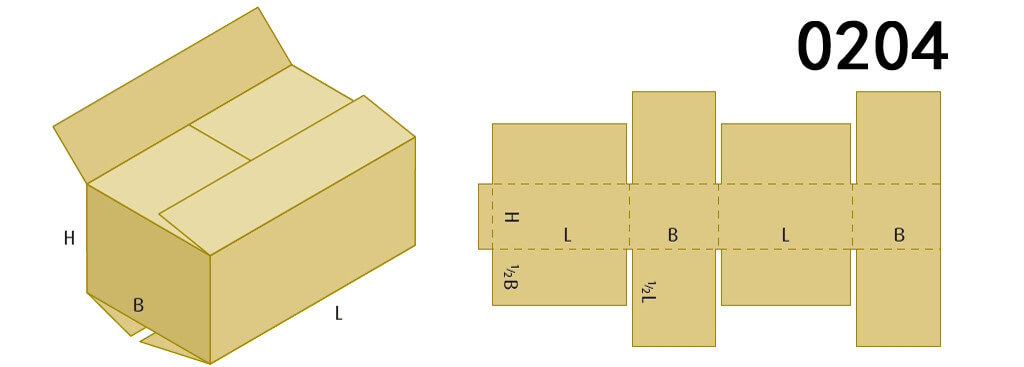

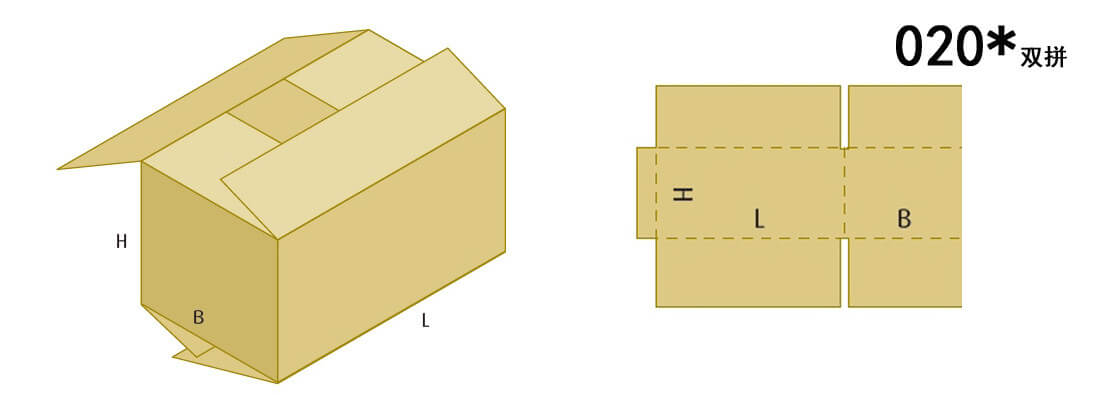

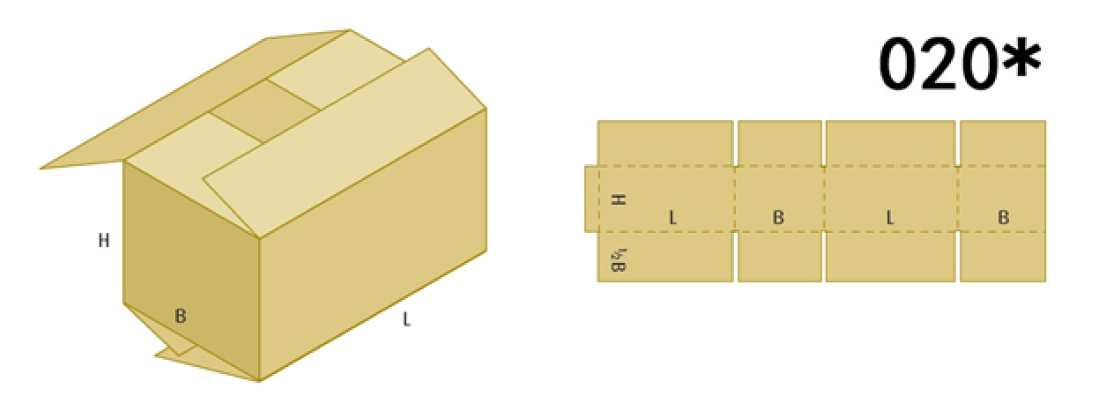

- Different sizes and different box types at will.
- Handle holes on both sides of box
Product details
BM2508-Plus carton box machine is a multifunctional packaging machine with horizontal slotting and scoring, vertical slitting and creasing, horizontal trimming.
Compared with traditional packaging equipment, it has a flexible dimension adjusting system. All settings can be entered directly through a touch screen panel within one minute.
Specifications
| Model | BM1800-Mini | BM2508-Plus | BM2508-Pro | BM3000-HD |
|---|---|---|---|---|
| Cardboard Type | Single wall/Double wall | Single wall/Double wall | Single wall/Double wall | Single/Double/ Triple wall (AAA Heavy Duty Cardboard) |
| Cardboard Thickness | 2-12mm | 2-10mm | 2-12mm | 2-16mm |
| Cardboard Gram | 1400g/m² | 1200g/m² | 1200g/m² | 2400g/m² |
| Max. Board Size | 1800mm(W) * Unlimited Length | 2500mm(W) * Unlimited Length | 2500mm(W) * Unlimited Length | 3000mm(W) * Unlimited Length |
| Min. Board Size | 140mm(W) * 600mm(L) | 200mm(W) * 650mm(L) | 200mm(W) * 650mm(L) | 300mm(W) * 660mm(L) |
| Pre-Creasing Wheel | × | × | × | 4 |
| Vertical Creasing | ||||
| Quantity | 6 | 4 | 4 | 4 |
| Min. Distance | 20mm (Or 25mm) | 75mm(Standard) 20mm(Optional) | 30mm | 5mm |
| Inconsistent Creasing | ● | × | ● | ● |
| Vertical Slitting | ||||
| Quantity | 6 | 4 | 4 | 4 |
| Min. Distance | 20mm (Or 25mm) | 75mm | 36mm | 36mm |
| Knife Sharpening Function | × | × | ● | ● |
| Cross Cutting | ||||
| Quantity | 1 | 1 | 1 | 1 |
| Up and Down | × | × | × | ● |
| Glue Flap Crush | × | × | Optional | ● |
| Independent Motor Control, Quick Changeover Time | ● | × | ● | ● |
| Auxiliary Paper Output Roller | × | × | ● | ● |
| Touchscreen | Leadshine | Flexem | Flexem | Siemens |
| Power Supply | 380V±10%，Max 7kW | 380V±10%，Max 8kW | 380V±10%，Max 8kW | 380V±10%，Max 10kW |
| Machine Size | 2500(W) * 1500(L) * 2030(H)mm | 3610(W) * 2050(L) * 2090(H)mm | 3610(W) * 2050(L) * 2090(H)mm | 3820(W) * 2060(L) * 1970(H)mm |
| Machine Weight | Appr. 1848kg | Appr. 3300kg | Appr. 3400kg | Appr. 4500kg |
Application
BM2508-Plus is a fully automatic carton box making machine, suitable for box plants with small quantity orders and big-size cartons, which effectively solves the problem of scattered orders.
It can also provide on-demand corrugated packaging solutions for box factories, furniture, hardware accessories, e-commerce logistics, and other industries. Customized packaging solutions can be designed and provided according to customers’ special requirements.
Standard Configuration
- 1 pcs paper feeding bracket
- 2 pcs 500mm slotting knife
- 1 pcs horizontal scoring beam
- 4 pcs vertical creasing wheels
- 4 pcs vertical slitting knives
- 1 pcs cross cutting knife
- 1 pcs handle die-cutting module
Major Functions Of Corrugated Box Machine BM2508 SE
Compared with BM2508-Plus, BM2508-SE is an economic version machine with horizontal slotting and scoring, vertical slitting and creasing, cross trimming, and inline gluing option all in one compact machine.
Cardboard Feeding
- 20-50 sheets can be loaded, thickness ranging from 10 to 2 mm.
- A continuous cardboard feeding system with a vacuum pump makes cardboard feeding more accurate.
Horizontal Slotting & Scoring
- Two 500mm symmetrical slotting knives
- Slotting knife and creasing beam integrated design
Vertical Scoring & Slitting
- 4 vertical slitting knives, rotated by the servo motor to make the side of the carton box more beautiful and flat
- 4 Creasing wheels
Cross Cutting System
- Cut off extra cardboard without an additional paper separator
Die Cutting System
- Hand hole, vent hole, special-shaped rounded corners.
- Cheap module and easy replacement
Inline Gluing System
- Inline cold gluing auto application, no need for extra gluing machine.
- Highest efficiency and versatility.

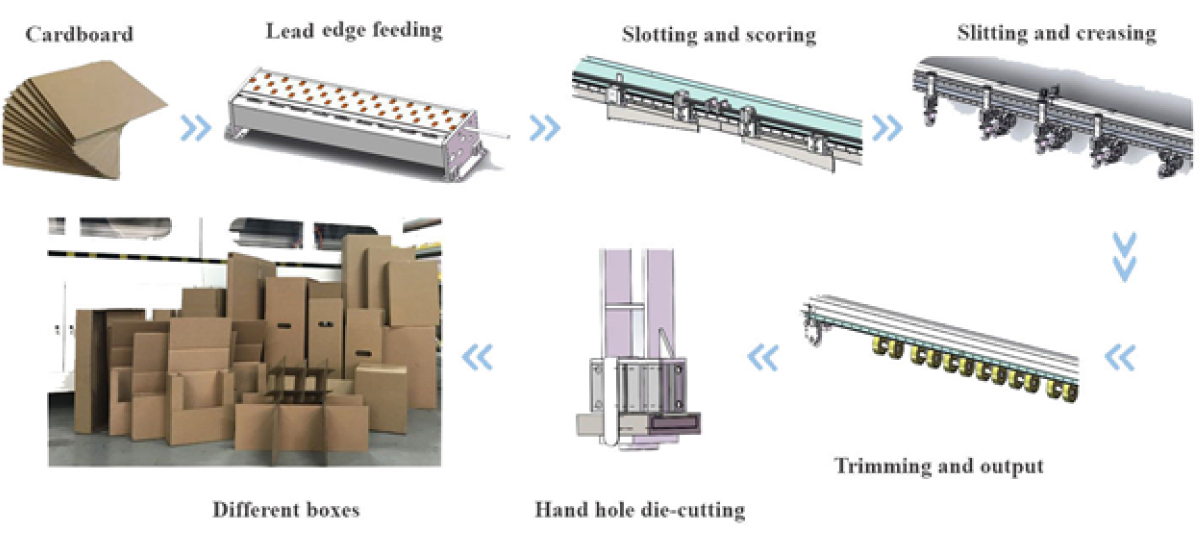

Carton Box Making Machine BM2508-Plus Workflow
